ZSS-112-07-S-D-1115

$5.67

Description：CONN HDR .100" 24POS
Series：Flex Stack, ZSS
Mfr：Samtec Inc.
Package：Bulk,Bulk

SKU:c12d77b9383f Category: Headers, Male Pins Brand: Samtec Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ZSS-112-07-S-D-1115 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN HDR .100" 24POS. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for ZSS-112-07-S-D-1115

Description：CONN HDR .100" 24POS
Series：Flex Stack, ZSS
Mfr：Samtec Inc.
Package：Bulk,Bulk
Connector Type：Header, Elevated
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：24
Number of Rows：2
Row Spacing - Mating：-
Number of Positions Loaded：-
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：-
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：-
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Polyester, Glass Filled
Features：-
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：-
Voltage Rating：-

Headers, Male Pins datasheet and documents for ZSS-112-07-S-D-1115

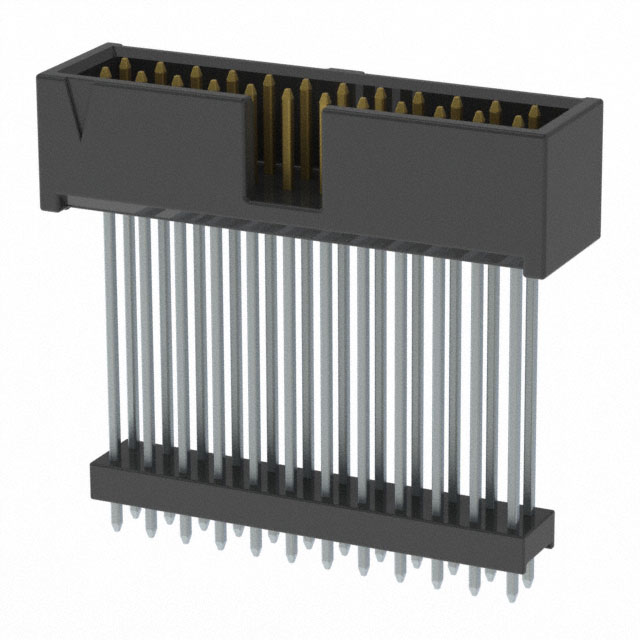

ZSS-112-07-S-D-1115

Headers, Male Pins Overview

The ZSS-112-07-S-D-1115 is a 24-position header connector from Samtec's Tiger Eye™ series. It features a 0.100-inch (2.54mm) pitch and dual rows of contacts. The component utilizes gold-plated phosphor bronze terminals with a 30µin thickness for reliable mating. Designed for through-hole vertical mounting, it offers a fixed tail length of 1.115 inches. The housing is constructed from black liquid crystal polymer (LCP), rated UL94 V-0, supporting operating temperatures from -55°C to +125°C.

Headers, Male Pins Feature Summary

Fixed tail length design ensures consistent board-to-board stacking height
Tiger Claw™ contact technology provides secure signal retention
Gold plating enhances corrosion resistance and conductivity

Headers, Male Pins Applications

Board-to-Board interconnects
Backplane connections
High-density circuit assemblies

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Samtec documentation to confirm pin count, row configuration, and termination style. Ensure the fixed tail length requirement matches the mechanical stack-up constraints of the target assembly. Confirm RoHS compliance status if environmental regulations apply to the final product deployment.

Headers, Male Pins Selection Notes

Select this part when a rigid, fixed-height connection is required rather than flexible stacking options. Evaluate the 1.115-inch tail length against available PCB clearance. Consider the 2.54mm pitch compatibility with existing mating headers. Assess thermal performance within the specified -55°C to +125°C range for the intended environment.

Headers, Male Pins Part Context

This component belongs to the Tiger Eye™ ZSS series, characterized by shrouded headers with fixed tail lengths. It differs from flexible stacking variants by providing a stable, non-compliant connection interface. The series is designed for applications requiring precise alignment and robust mechanical stability in dense electronic layouts.
