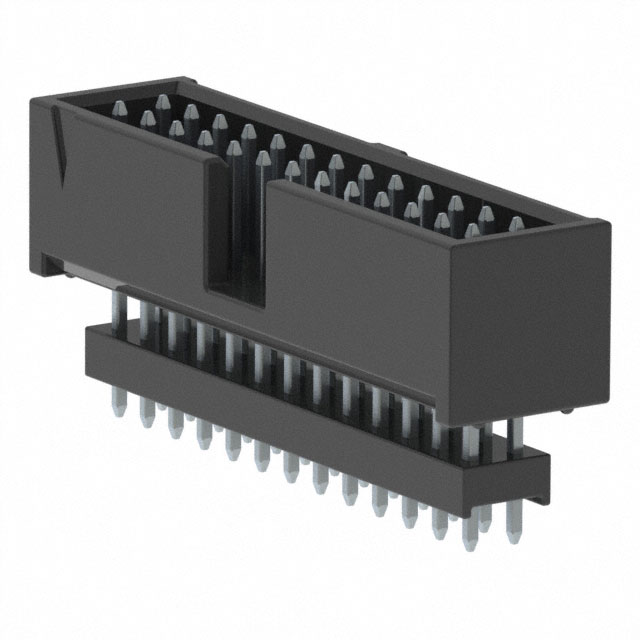

ZSS-113-01-T-D-530 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN HDR .100" 26POS. Review the specifications below when checking this part for your BOM.
Headers, Male Pins specifications for ZSS-113-01-T-D-530
- Description：CONN HDR .100" 26POS
- Series：Flex Stack, ZSS
- Mfr：Samtec Inc.
- Package：Bulk,Bulk
- Connector Type：Header, Elevated
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：26
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.250" (6.35mm)
- Contact Length - Post：0.100" (2.54mm)
- Overall Contact Length：0.630" (16.00mm)
- Insulation Height：0.530" (13.46mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：Tin
- Contact Material：Phosphor Bronze
- Insulation Material：Polyester, Glass Filled
- Features：Keying Slot
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：-
Headers, Male Pins datasheet and documents for ZSS-113-01-T-D-530
Headers, Male Pins Overview
The ZSS-113-01-T-D-530 is a board-to-board header manufactured by Samtec Inc. It features a 26-position configuration with two rows of male pins. The connector utilizes a 0.100-inch (2.54mm) pitch and employs tin plating on the contacts. Designed for surface-mount installation, it offers a mating contact length of 0.530 inches. This component belongs to the ZSS series, providing reliable vertical interconnection for electronic assemblies.
Headers, Male Pins Feature Summary
- Surface-mount technology design for automated PCB assembly
- Dual-row male pin configuration for high-density connections
- Tin-plated phosphor bronze contacts for corrosion resistance
Headers, Male Pins Applications
- Board-to-board interconnect systems
- High-density electronic assemblies
- Industrial control modules
Headers, Male Pins Procurement Notes
Verify the specific suffix '530' against official Samtec documentation to confirm the exact mating contact length specification. Ensure compatibility with the target PCB footprint and mounting requirements before procurement. Cross-reference the part number with current manufacturer catalogs to validate availability and any potential revisions.
Headers, Male Pins Selection Notes
Select this component when a surface-mount header with a 2.54mm pitch is required. The dual-row layout supports higher pin counts in a compact area. Verify that the mating connector matches the specified contact length and pin configuration for proper mechanical engagement and electrical continuity.
Headers, Male Pins Part Context
This part belongs to the ZSS series of low-profile headers from Samtec. These connectors are designed for space-constrained applications requiring robust board-to-board connectivity. The series offers various options for pitch, row count, and termination style to suit diverse electronic design needs.
Headers, Male Pins Replacement Considerations
Consult Samtec's official substitution guide for compatible alternatives. Verify that any substitute maintains identical pitch, row configuration, and mounting type to ensure mechanical fit and electrical performance without redesigning the PCB footprint.
