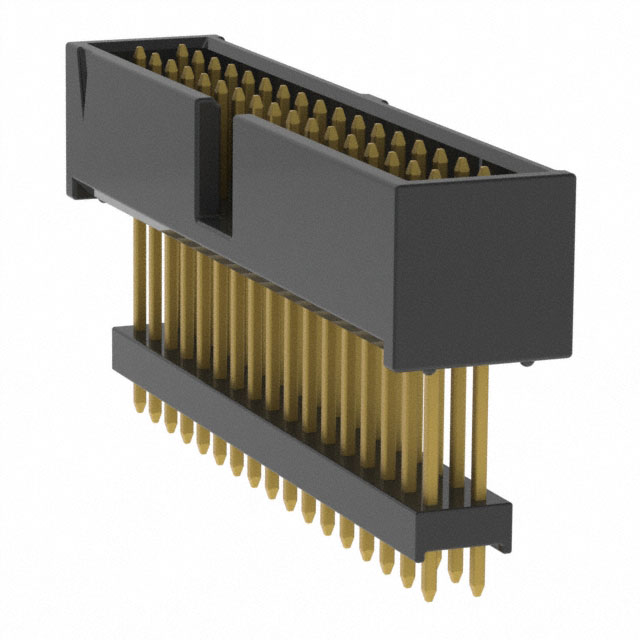

ZSS-117-03-G-D-740

$5.07

Description：CONN HDR .100" 34POS
Series：Flex Stack, ZSS
Mfr：Samtec Inc.
Package：Bulk,Bulk

SKU:43c25459ebf3 Category: Headers, Male Pins Brand: Samtec Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ZSS-117-03-G-D-740 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN HDR .100" 34POS. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for ZSS-117-03-G-D-740

Description：CONN HDR .100" 34POS
Series：Flex Stack, ZSS
Mfr：Samtec Inc.
Package：Bulk,Bulk
Connector Type：Header, Elevated
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：34
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Number of Positions Loaded：-
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：-
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：-
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：Gold
Contact Material：Phosphor Bronze
Insulation Material：Polyester, Glass Filled
Features：-
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：-
Voltage Rating：-

Headers, Male Pins datasheet and documents for ZSS-117-03-G-D-740

ZSS-117-03-G-D-740

Headers, Male Pins Overview

The ZSS-117-03-G-D-740 is a board connector manufactured by Samtec Inc. It features 34 contacts arranged in 2 rows with male pin terminals and straight solder termination. The component has a 2.54 mm (0.1 in) pitch and row spacing, designed for through-hole installation. Contact plating is gold over phosphor bronze. Operating temperature ranges from -55 C to +125 C. The housing is black polyester rated UL 94 V-0.

Headers, Male Pins Feature Summary

Elevated terminal strip design facilitates blind mating applications
Shrouded header construction ensures precise alignment during connection
Square post contact system provides rugged retention features

Headers, Male Pins Applications

Board-to-board interconnects requiring elevated stacking
Cable assembly test connections
Blind mating scenarios with secured form factors

Headers, Male Pins Procurement Notes

Verify the specific suffix 740 against official Samtec documentation to confirm exact shroud height and mating partner compatibility. Ensure the ordering configuration matches the required elevation specifications for your PCB layout. Cross-reference the RoHS compliance status directly with the manufacturer's current declaration to ensure regulatory adherence for your target market.

Headers, Male Pins Selection Notes

Select this component when an elevated shrouded header is necessary for blind mating or cable attachment. The 2.54 mm pitch suits standard board layouts. Verify that the phosphor bronze material and gold plating meet the electrical requirements. Confirm the straight through-hole mounting style aligns with the assembly process and available board space constraints.

Headers, Male Pins Part Context

This part belongs to the ZSS series of .100 inch shrouded elevated terminal strips. It is part of the Flex Stack product line designed for flexible stacking solutions. The series offers various configurations for board-to-board and cable applications with rugged retention capabilities.
