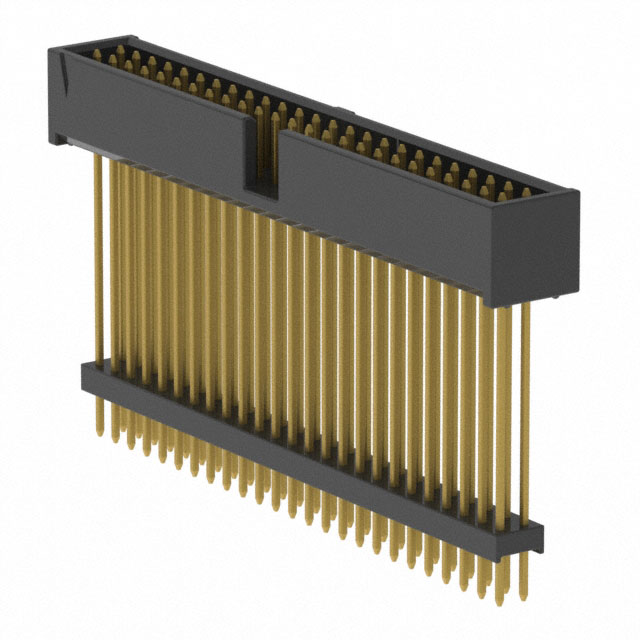

ZSS-125-09-G-D-1215

$7.94

Description：CONN HDR .100" 50POS
Series：Flex Stack, ZSS
Mfr：Samtec Inc.
Package：Bulk,Bulk

SKU:7a296019abf2 Category: Headers, Male Pins Brand: Samtec Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ZSS-125-09-G-D-1215 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN HDR .100" 50POS. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for ZSS-125-09-G-D-1215

Description：CONN HDR .100" 50POS
Series：Flex Stack, ZSS
Mfr：Samtec Inc.
Package：Bulk,Bulk
Connector Type：Header, Elevated
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：50
Number of Rows：2
Row Spacing - Mating：-
Number of Positions Loaded：-
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：-
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：-
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Polyester, Glass Filled
Features：-
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：-
Voltage Rating：-

Headers, Male Pins datasheet and documents for ZSS-125-09-G-D-1215

ZSS-125-09-G-D-1215

Headers, Male Pins Overview

The ZSS-125-09-G-D-1215 is a Flex Stack shrouded elevated terminal strip manufactured by Samtec. It features a 2.54 mm pitch and provides 50 positions across two rows. The connector utilizes phosphor bronze contacts with gold plating and polyester insulation rated UL 94 V-0. Designed for through-hole mounting, it operates within a temperature range of -55°C to +125°C. This component supports board-to-board and cable applications, offering reliable electrical interconnection in compact electronic assemblies.

Headers, Male Pins Feature Summary

Elevated shroud design facilitates blind mating operations
Flexible stack construction allows variable post heights
Gold-plated phosphor bronze contacts ensure conductivity

Headers, Male Pins Applications

Board-to-board interconnections
Cable connections
Blind mating applications

Headers, Male Pins Procurement Notes

Verify the specific suffix configuration against official documentation to confirm mechanical dimensions and contact length. Ensure compatibility with mating socket strips such as SSW or ESQ series. Confirm RoHS compliance status and material declarations prior to integration into final product designs.

Headers, Male Pins Selection Notes

Select this header when flexible stack height adjustment is required for precise alignment. The shrouded body prevents misalignment during insertion. Verify that the operating environment remains within the specified thermal limits. Ensure PCB layout accommodates the through-hole termination style and appropriate spacing requirements.

Headers, Male Pins Part Context

This component belongs to the ZSS series of Flex Stack headers. It is designed for high-density interconnects requiring variable stacking heights. The series offers customizable lengths in small increments. It serves as a male pin header solution for rigid-flex and multi-layer board architectures.
