ZVBP-10R5G-S+

Overview

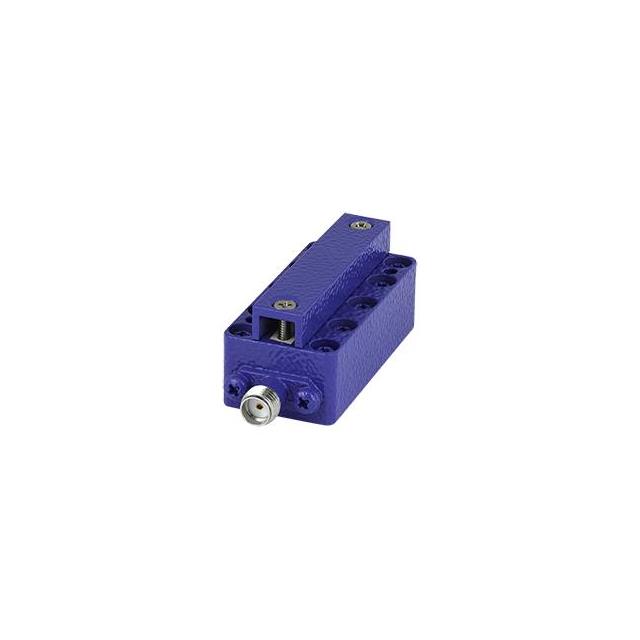

The ZVBP-10R5G-S+ is a signal conditioning cavity band pass filter manufactured by Mini-Circuits. It operates within a frequency range of 9750 to 11250 MHz, with a center frequency of 10500 MHz. The component features a 50 Ohm impedance and utilizes SMA connectors. Typical insertion loss ranges from 0.5 to 1.5 dB, while the voltage standing wave ratio (VSWR) is typically 1.73:1. The device offers broad stopband performance up to 18 GHz and fast roll-off characteristics.

Feature Summary

• Low insertion loss combined with excellent power handling capabilities
• Broad stopband performance extending up to 18 GHz
• Fast roll-off characteristics for effective signal conditioning

Applications

• Transmitter front end applications
• Receiver front end applications
• Signal conditioning in RF systems

Procurement Notes

Verify the specific connector type and mechanical dimensions against the official Mini-Circuits datasheet before procurement, as variations may exist. Confirm RoHS3 compliance status if environmental regulations apply to your deployment. Ensure the chassis mount configuration matches your system integration requirements. Cross-reference the part number suffix to confirm exact specifications.

Selection Notes

Select this component when a cavity band pass filter with low insertion loss and high power handling is required for frequencies around 10.5 GHz. Consider the 50 Ohm impedance and SMA interface compatibility with existing circuitry. Evaluate the broad stopband performance up to 18 GHz against specific rejection requirements. Verify that the chassis mounting style fits the physical constraints of the enclosure.

Part Context

This model belongs to the ZVBP series of cavity band pass filters from Mini-Circuits. These components are designed for robust performance in demanding RF environments. The series emphasizes low insertion loss and high power handling, making them suitable for critical signal path applications where signal integrity and thermal stability are paramount.

Replacement Considerations

Consult Mini-Circuits documentation for direct substitutes. Alternative models within the ZVBP series may offer different frequency ranges or connector types. Ensure any replacement maintains the 50 Ohm impedance and compatible mounting style.
