Product Detailed Parameters

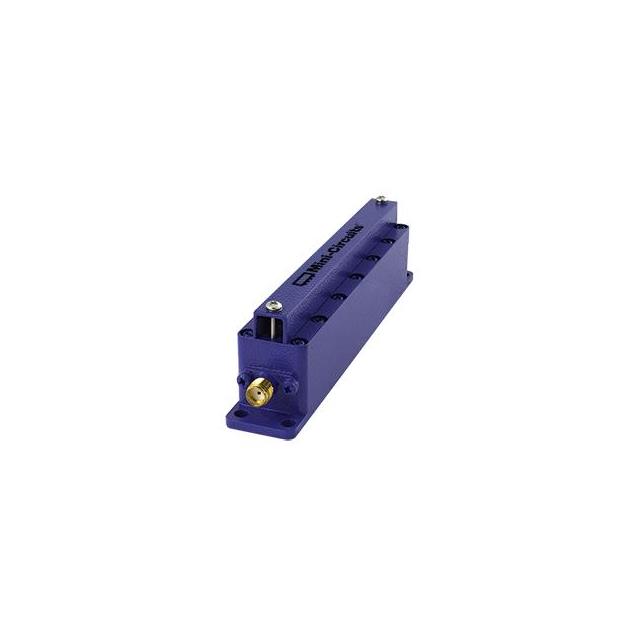

- Description：RF FILTER BAND PASS 11.3GHZ MOD
- Series：ZVBP-11G3-S+
- Mfr：Mini-Circuits
- Package：Tray
- Frequency：11.3GHz Center
- Bandwidth：200MHz
- Filter Type：Band Pass
- Ripple：-
- Insertion Loss：3dB
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Size / Dimension：4.466" L x 0.748" W (113.43mm x 19.00mm)
- Height (Max)：1.161" (29.50mm)
Download product information
Overview
The ZVBP-11G3-S+ is a cavity band pass filter manufactured by Mini-Circuits. It operates within a frequency range of 11200 to 11400 MHz and features a 50 Ohm impedance. The component utilizes SMA connectors for signal interfacing. It is designed for signal conditioning applications in RF systems, providing specific frequency selection capabilities within the defined passband.
Feature Summary
- Cavity construction for stable RF performance
- SMA connector interface
- RoHS3 compliant environmental standard
Applications
- RF signal conditioning
- Frequency selection in microwave systems
Procurement Notes
Verify the exact part number suffix against official Mini-Circuits documentation to ensure correct specifications. Confirm RoHS3 compliance status through current manufacturer datasheets. Check for any specific handling requirements associated with cavity filter components during installation.
Selection Notes
Select this component when a fixed center frequency around 11.3 GHz is required. Ensure system impedance matches the 50 Ohm specification. Verify that the physical dimensions of the PU2164 case style fit the intended enclosure constraints.
Part Context
This model belongs to the Mini-Circuits ZVBP series of cavity band pass filters. These components are engineered for high-performance RF applications requiring precise frequency control. The series typically offers low insertion loss and good rejection characteristics suitable for demanding communication environments.
Replacement Considerations
Consult Mini-Circuits official substitution guides for verified alternatives. Generic cross-references may not match the specific electrical performance or mechanical footprint of the original cavity design.
