Product Detailed Parameters
- Description：RF FILTER BANDPASS 11.375GHZ MOD
- Series：ZVBP-11R375G-S+
- Mfr：Mini-Circuits
- Package：Tray
- Frequency：11.375GHz Center
- Bandwidth：500MHz
- Filter Type：Band Pass
- Ripple：-
- Insertion Loss：1.2dB
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Size / Dimension：2.209" L x 0.740" W (56.10mm x 18.80mm)
- Height (Max)：0.614" (15.60mm)
Download product information
Overview

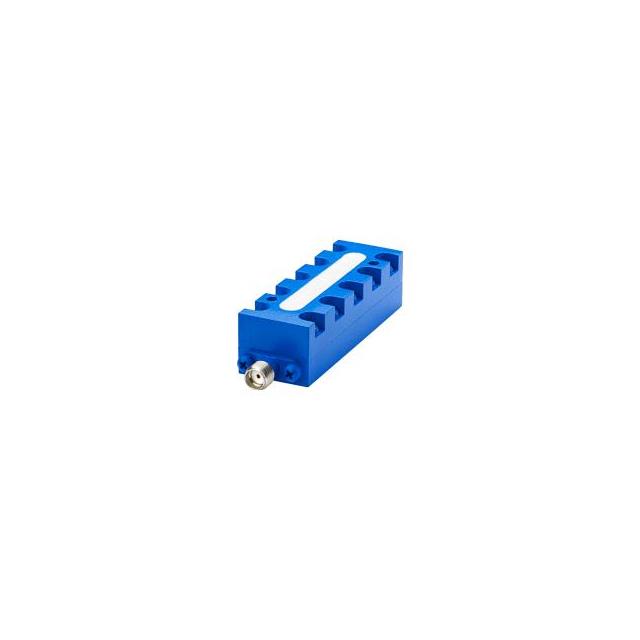

The ZVBP-11R375G-S+ is a cavity bandpass filter manufactured by Mini-Circuits, designed for radio frequency signal conditioning. It operates within a passband of 11125 to 11625 MHz, centered at 11.375 GHz. The component features a 50 Ohm impedance and utilizes SMA connectors for interface connectivity. Packaged as a module, it provides high selectivity suitable for narrowband applications in the microwave spectrum.
Feature Summary
- High Q-value resonant structure design
- Narrow bandwidth capability with high selectivity
- Low noise floor characteristics
Applications
- Microwave communication systems
- Radio frequency signal filtering
- Narrowband application modules
Procurement Notes
Verify the specific datasheet revision and connector type compatibility before integration. Confirm that the SMA interface matches the system requirements. Ensure the operating environment stays within the specified frequency range of 11125 to 11625 MHz for optimal performance. Check for RoHS and REACH compliance documentation if required by regional regulations.
Selection Notes
Select this component when a fixed center frequency of 11.375 GHz is required. The cavity construction offers superior rejection compared to planar filters. Consider the physical module size and SMA connector orientation during PCB or chassis layout planning. This model is appropriate for applications demanding stable performance in the K-band frequency range.
Part Context
This part belongs to the ZVBP series of cavity bandpass filters from Mini-Circuits. These components are engineered for high-performance RF applications requiring precise frequency selection. The series utilizes robust cavity designs to maintain stability and low insertion loss across the operational bandwidth.
Replacement Considerations
Consult official Mini-Circuits substitution guides for compatible alternatives. Verify that any substitute maintains the 11.375 GHz center frequency and 50 Ohm impedance. Ensure mechanical compatibility with existing SMA mounting structures.
