ZVBP-11R7G-S+

Overview

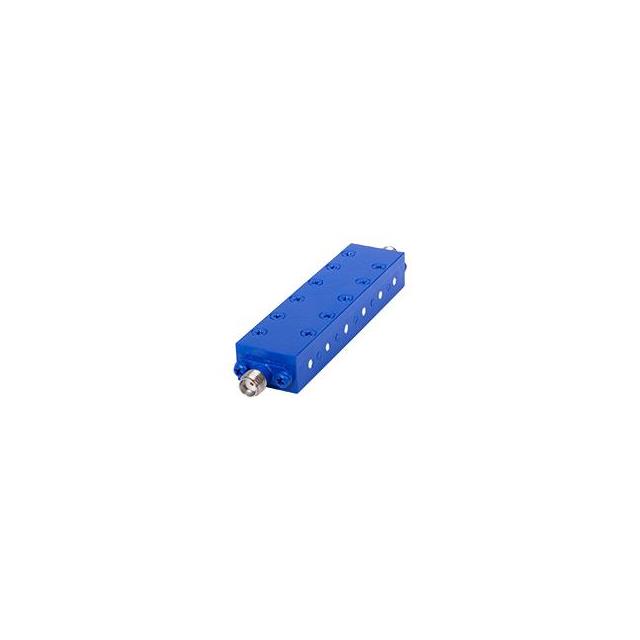

The ZVBP-11R7G-S+ is a cavity band pass filter manufactured by Mini-Circuits, designed for radio frequency signal conditioning. It operates within a frequency range of 10700 to 12750 MHz with a center frequency of 11725 MHz and a bandwidth of 250 MHz. The component features a 50 Ohm impedance and utilizes SMA connectors for termination. It is housed in the UG2852 case style and complies with RoHS and REACH standards. The maximum operating temperature is rated at +85 C.

Feature Summary

• Provides precise signal conditioning through cavity band pass filtering technology
• Ensures stable RF performance with defined 50 Ohm impedance matching
• Constructed with durable SMA connector interfaces for reliable interconnection

Applications

• Radio frequency signal processing systems
• Microwave communication infrastructure
• Test and measurement equipment requiring specific bandpass characteristics

Procurement Notes

Verify the exact part number ZVBP-11R7G-S+ against official Mini-Circuits documentation to ensure compatibility with your system requirements. Confirm that the SMA termination style and UG2852 package dimensions align with your mechanical constraints. Check for updated compliance certifications such as RoHS and REACH status before finalizing procurement decisions to meet regulatory standards.

Selection Notes

Select this component when a fixed center frequency of 11725 MHz and a 250 MHz bandwidth are required. Ensure the design supports the specified 10700 to 12750 MHz operational range. Verify that the SMA interface matches existing circuit board or cable assemblies. Consider the thermal rating of +85 C for environmental suitability in the intended application environment.

Part Context

This model belongs to Mini-Circuits' extensive portfolio of RF filters, specifically within the cavity band pass filter category. These components are engineered for high-performance applications where strict frequency selectivity is necessary. The ZVBP series typically offers robust construction suitable for demanding RF environments, providing consistent signal integrity across the specified microwave frequency bands.

Replacement Considerations

Consult Mini-Circuits official substitution guides for verified equivalent models. Ensure any replacement maintains the 10700-12750 MHz frequency range and 50 Ohm impedance. Verify connector type compatibility if direct pin-to-pin replacement is required without PCB redesign.
