ZVBP-13R1G-S+

$438.70

Description：RF FILTER BAND PASS 13.1GHZ MOD
Series：ZVBP-13R1G-S+
Mfr：Mini-Circuits
Package：Tray

SKU:6c70c5be613a Category: RF Filters Brand: Mini-Circuits

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF FILTER BAND PASS 13.1GHZ MOD
Series：ZVBP-13R1G-S+
Mfr：Mini-Circuits
Package：Tray
Frequency：13.1GHz Center
Bandwidth：2.8GHz
Filter Type：Band Pass
Ripple：-
Insertion Loss：2dB
Mounting Type：Chassis Mount
Package / Case：Module
Size / Dimension：2.559" L x 0.654" W (65.00mm x 16.60mm)
Height (Max)：0.441" (11.20mm)

Download product information

ZVBP-13R1G-S+

Overview

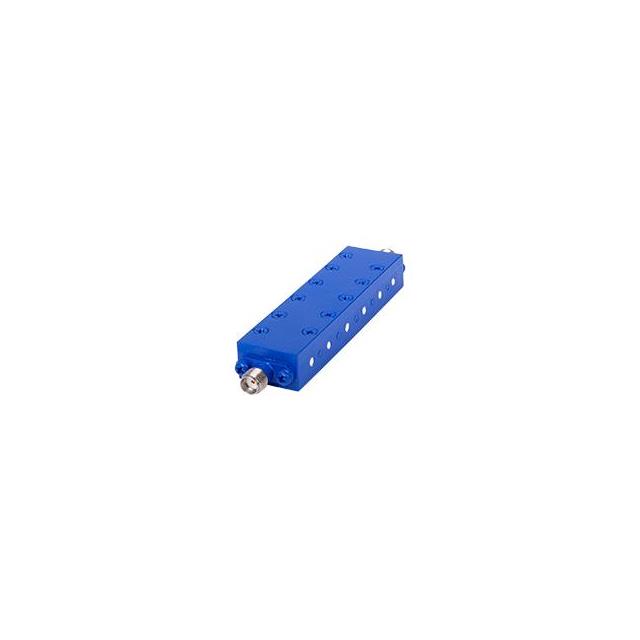

The ZVBP-13R1G-S+ is a cavity band pass filter manufactured by Mini-Circuits. It operates within a frequency range of 11700 to 14500 MHz, providing a bandwidth of 2800 MHz with a center frequency of 13100 MHz. The component maintains a system impedance of 50 Ohms and utilizes SMA connectors for interface. It is housed in the UH2851 case style and complies with RoHS and REACH standards.

Feature Summary

Cavity construction for high performance signal conditioning
SMA connector interface for reliable RF connection
RoHS and REACH compliance for regulatory adherence

Applications

Radio frequency signal filtering
Microwave communication systems
Test and measurement equipment

Procurement Notes

Verify the specific suffix 'S+' indicates the correct termination or plating option required for your assembly. Confirm that the SMA connector type matches your board layout. Ensure the operating environment temperature falls within the specified limits for the UH2851 package. Check for any export control classifications such as EAR99 if applicable to your region.

Selection Notes

Select this component when a fixed center frequency near 13.1 GHz is required. The wide 2.8 GHz bandwidth suits applications needing broad spectral coverage. Consider the physical dimensions of the UH2851 case for PCB space constraints. Verify that the 50 Ohm impedance aligns with the rest of the transmission line design.

Part Context

This part belongs to the ZVBP series of cavity band pass filters from Mini-Circuits. These components are designed for robust performance in demanding RF environments. The series offers various frequency options to suit different microwave applications. The ZVBP-13R1G-S+ specifically targets the K-band frequency range.

Replacement Considerations

Consult Mini-Circuits documentation for direct cross-references. Other ZVBP models may offer similar electrical characteristics with different frequency centers. Verify mechanical compatibility before substituting with generic cavity filters.
