ZVBP-1420-N+

Overview

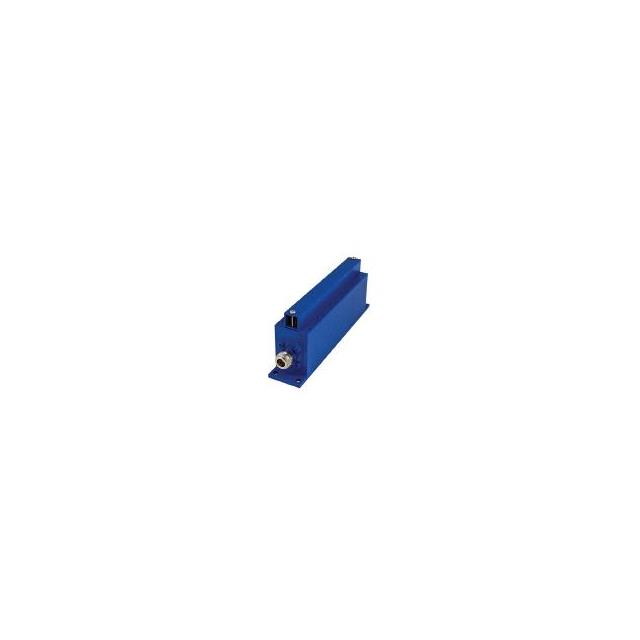

The ZVBP-1420-N+ is a cavity band pass filter manufactured by Mini-Circuits, designed for RF signal conditioning applications. It operates within a frequency range of 1415 to 1425 MHz, providing a center frequency of 1420 MHz with a bandwidth of 10 MHz. The component features a 50 Ohm impedance and utilizes N-type connectors. Insertion loss specifications range from 1.65 to 2.5 dB. The unit is housed in the SJ2566 case style and is compliant with RoHS3 standards.

Feature Summary

• Provides ultra-narrowband filtering through resonant structures with very high Q factors
• Delivers high-selectivity performance suitable for demanding RF environments
• Constructed as a robust cavity filter for stable signal conditioning

Applications

• High-selectivity RF signal processing
• Microwave component integration
• IF and RF system filtering

Procurement Notes

Verify the specific datasheet version and electrical graphs directly from Mini-Circuits or authorized distributors before integration. Confirm that the SJ2566 package dimensions and connector type match your PCB layout requirements. Ensure environmental compliance with RoHS3 standards aligns with your manufacturing regulations. Cross-reference insertion loss values against your system budget constraints.

Selection Notes

Select this component when narrow bandwidth and high selectivity are required at 1420 MHz. The 50 Ohm impedance matches standard RF systems. Consider the insertion loss range of 1.65 to 2.5 dB for signal attenuation calculations. The N-type interface dictates connector compatibility. Evaluate the cavity construction benefits for thermal stability and Q factor compared to planar alternatives.

Part Context

This part belongs to Mini-Circuits' ZVBP series of cavity band pass filters. The series covers DC to 86 GHz capabilities. The ZVBP models utilize resonant structures for high Q performance. This specific model targets the 1.42 GHz region. The series is designed for general RF, IF, and microwave applications requiring precise frequency selection.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify if other ZVBP models with different center frequencies meet the spectral requirements. Consult Mini-Circuits for direct equivalents if the exact 1415-1425 MHz range is critical.
