ZVBP-1537-S+

Overview

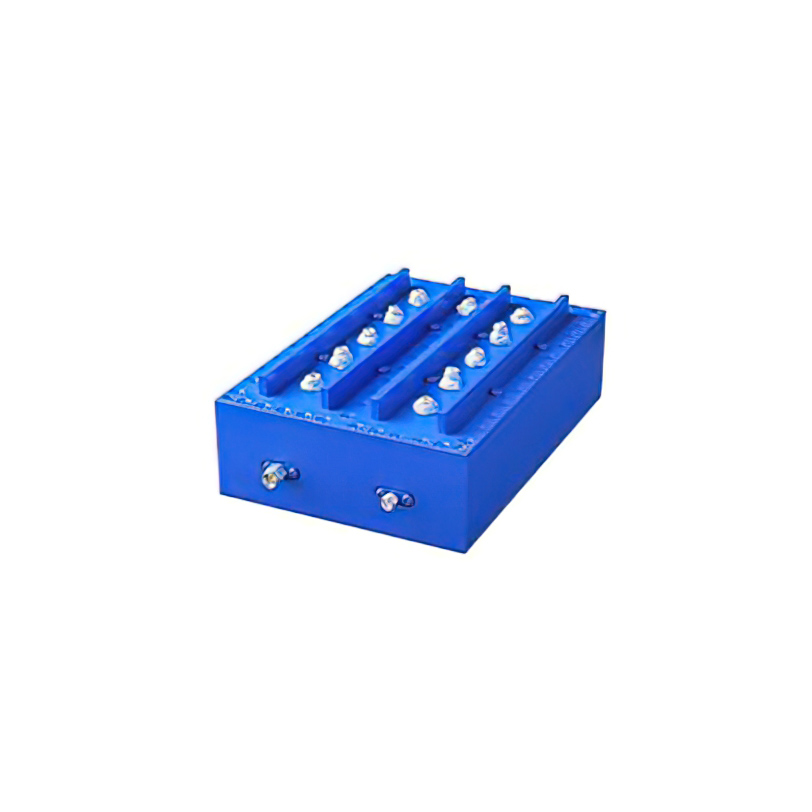

The ZVBP-1537-S+ is a cavity band pass filter manufactured by Mini-Circuits, designed for radio frequency signal conditioning. It operates within a passband of 1533.4 MHz to 1541.1 MHz, centered at 1537 GHz. The component features a nominal insertion loss of 1 dB and typical return loss of 20 dB, with high rejection capabilities reaching 80 dB. It maintains a standard impedance of 50 Ohms and utilizes SMA connectors for interface. This device is engineered for stable performance across varying environmental conditions.

Feature Summary

• High rejection capability ensuring effective signal isolation
• Low insertion loss for efficient power transmission
• Robust cavity construction for stability

Applications

• Radio frequency filtering systems
• Communication equipment signal conditioning
• Industrial control applications requiring precise frequency selection

Procurement Notes

Verify the specific datasheet version for the ZVBP-1537-S+ to confirm exact electrical tolerances and mechanical dimensions prior to integration. Ensure compatibility with SMA connector interfaces in your design. Cross-reference official Mini-Circuits documentation for any updates regarding RoHS compliance or material specifications to meet regulatory requirements for your target market.

Selection Notes

Select this component when a narrow bandpass characteristic around 1537 MHz is required. The 50 Ohm impedance matches standard RF systems. Consider the physical size and SMA termination type during PCB layout. Evaluate the 80 dB rejection against system interference levels to ensure adequate signal purity without unnecessary over-specification.

Part Context

This part belongs to Mini-Circuits' range of RF filters, specifically cavity band pass filters. These components are utilized for their high performance and reliability in demanding environments. The series supports various center frequencies, allowing designers to choose specific models based on required bandwidth and frequency targets within wireless and industrial sectors.

Replacement Considerations

Consult Mini-Circuits official substitution guides for compatible alternatives. Verify that any substitute maintains identical SMA connectivity, 50 Ohm impedance, and similar rejection characteristics to ensure seamless integration without redesigning the surrounding circuitry.
