ZVBP-27925-K1+

Overview

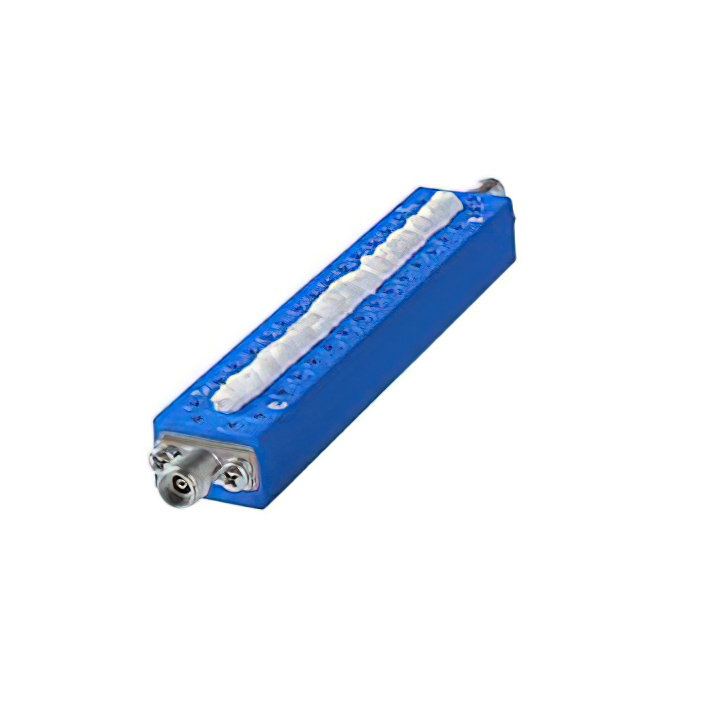

The ZVBP-27925-K1+ is a cavity band pass filter designed for signal conditioning applications. It operates within a frequency range of 27.5 to 28.35 GHz with a center frequency of 27.925 GHz. The component features a 50 Ohm impedance and utilizes a 2.92mm in-line module connector interface. Typical electrical specifications include an insertion loss of 4 dB, a return loss of 20 dB, and high rejection characteristics.

Feature Summary

• High Q resonant structures for narrow-band performance
• Cavity technology implementation for high selectivity
• In-line module design for direct integration

Applications

• Frequency upconverter assemblies
• Radar systems
• Electronic warfare equipment
• Navigation systems

Procurement Notes

Verify the specific datasheet revision and absolute maximum ratings before integration. Confirm that the 2.92mm connector compatibility matches your system requirements. Ensure thermal management aligns with the component's power handling capabilities. Cross-reference part numbers to avoid counterfeit components during sourcing.

Selection Notes

Select this component when high selectivity and narrow bandwidth are required at millimeter-wave frequencies. The cavity construction offers superior performance compared to planar filters in high-power scenarios. Evaluate the 2.92mm interface constraints against existing board layouts. Consider the typical insertion loss impact on overall system noise figure.

Part Context

This model belongs to Mini-Circuits' cavity filter series, which employs resonant structures with very high Q factors. These filters are engineered for applications demanding high selectivity and stable performance in the microwave and millimeter-wave spectrum. The series supports complex RF assemblies requiring precise frequency control.

Replacement Considerations

No public confirmed substitute part numbers are available.
