ZVBP-28000-K1+

Overview

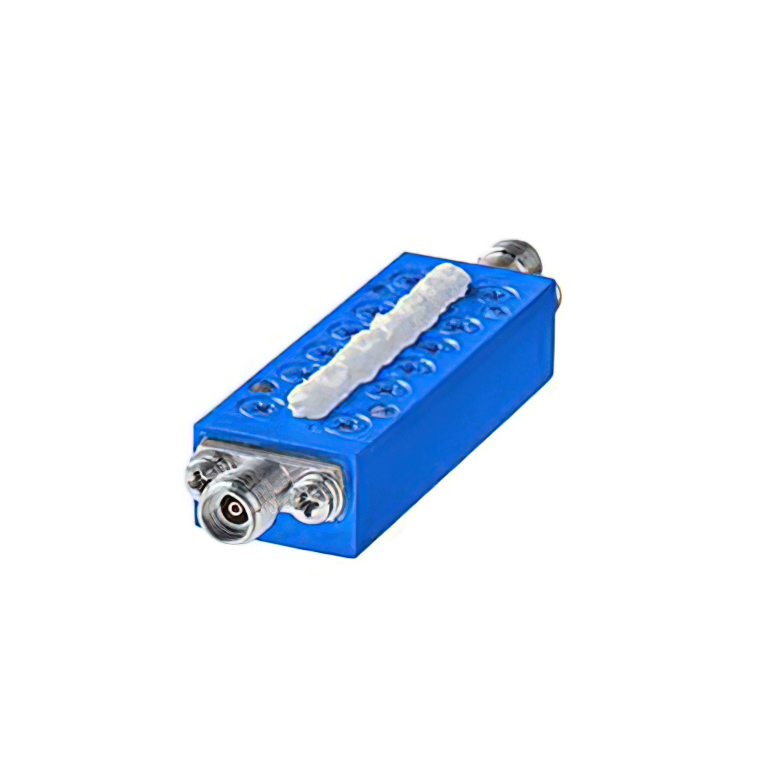

The ZVBP-28000-K1+ is a cavity band pass filter designed for RF applications. It operates within a frequency range of 26.5 to 29.5 GHz, centered at 28 GHz with a bandwidth of 3 GHz. The component features a 50 Ohm impedance and utilizes a 2.92mm female connector in an in-line module configuration. Key performance specifications include a typical insertion loss of 0.7 dB, a typical return loss of 20 dB, and high rejection capabilities reaching 80 dB.

Feature Summary

• Cavity construction provides high selectivity and stability
• Low insertion loss ensures efficient signal transmission
• High rejection capability minimizes out-of-band interference

Applications

• RF test and measurement systems
• Microwave communication links
• Signal conditioning modules

Procurement Notes

Verify the specific datasheet revision and connector orientation before integration. Confirm that the 2.92mm interface matches your system requirements. Ensure environmental conditions align with absolute maximum ratings to prevent permanent damage. Cross-reference part numbers carefully as suffixes may indicate variations.

Selection Notes

Select this component when operating frequencies fall between 26.5 and 29.5 GHz. Consider the 50 Ohm impedance match for standard RF systems. Evaluate the need for high rejection levels if adjacent channel interference is a concern. Verify physical dimensions and mounting requirements against available space constraints.

Part Context

This model belongs to Mini-Circuits' ZVBP series of cavity band pass filters. These components are engineered for high-performance microwave applications requiring precise frequency selection. The series typically offers robust construction suitable for demanding RF environments.

Replacement Considerations

Consult the official Mini-Circuits Replacement Part Reference Guide for verified substitutes. Do not assume functional equivalence without checking electrical parameters and mechanical interfaces.
