ZVBP-38500-V+

Description：RF FILTER BAND PASS 38.5GHZ MOD
Series：ZVBP-38500-V+
Mfr：Mini-Circuits
Package：Tray

SKU:a496f170d75e Category: RF Filters Brand: Mini-Circuits

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF FILTER BAND PASS 38.5GHZ MOD
Series：ZVBP-38500-V+
Mfr：Mini-Circuits
Package：Tray
Frequency：38.5GHz Center
Bandwidth：3GHz
Filter Type：Band Pass
Ripple：-
Insertion Loss：4dB
Mounting Type：Chassis Mount
Package / Case：Module
Size / Dimension：3.543" L x 0.630" W (90.00mm x 16.00mm)
Height (Max)：0.315" (8.00mm)

Download product information

ZVBP-38500-V+

Overview

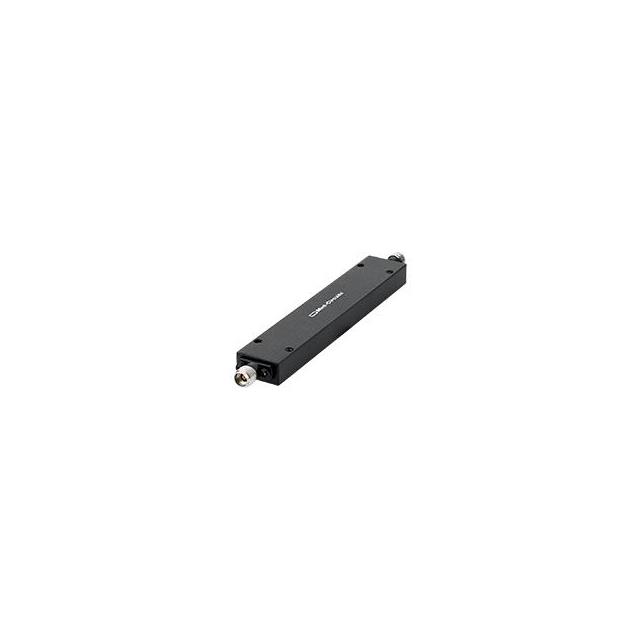

The ZVBP-38500-V+ is a cavity band pass filter manufactured by Mini-Circuits, designed for signal conditioning in high-frequency applications. It operates within a frequency range of 37000 to 40000 MHz and features a characteristic impedance of 50 Ohm. The component utilizes a UH3129 case style and is equipped with 2.92mm-F connectors. This device is engineered to provide precise filtering capabilities for RF and microwave systems requiring narrow-band performance.

Feature Summary

High Q resonant structures for narrow-band filtering
Cavity design ensuring stable signal conditioning
Compatible with 50 Ohm system impedance

Applications

RF signal conditioning
Microwave communication systems
Narrow-band filtering applications

Procurement Notes

Verify the specific suffix 'V+' against official Mini-Circuits documentation to confirm connector type and mechanical specifications. Ensure compatibility with 2.92mm interfaces. Cross-reference datasheet revisions for any updates to electrical parameters or case style details before integration into designs.

Selection Notes

Select this component when a fixed frequency band pass filter is required between 37 GHz and 40 GHz. Consider the UH3129 package dimensions and 2.92mm connector requirements for PCB or chassis mounting. Evaluate insertion loss and rejection specifications from the official datasheet to ensure they meet system noise floor and interference mitigation needs.

Part Context

This model belongs to the ZVBP series of cavity band pass filters from Mini-Circuits. These components are part of a broader portfolio of RF and microwave passive devices designed for frequencies up to 86 GHz. The series emphasizes high performance and reliability for demanding electronic environments.

Replacement Considerations

The ZVBP-38500-K+ is a related variant within the same product family. Verify if alternative suffixes such as K1+ offer different mechanical or electrical characteristics suitable for specific design constraints.
