ZVBP-3875-S+

Overview

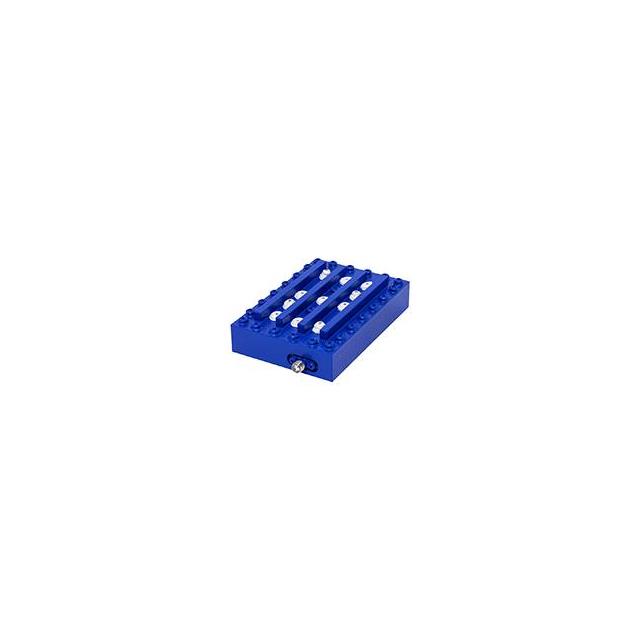

The ZVBP-3875-S+ is a cavity bandpass filter manufactured by Mini-Circuits, designed for radio frequency signal conditioning. It operates within a passband of 3845 MHz to 3905 MHz, centered at 3875 MHz with a bandwidth of 60 MHz. The component features a characteristic impedance of 50 Ohms and utilizes SMA connectors for interface connectivity. Housed in the QZ2439 case style, this filter provides precise frequency selection for RF applications requiring stable performance in the microwave spectrum.

Feature Summary

• Cavity construction ensures high stability and low insertion loss
• SMA connectors provide reliable interface compatibility
• RoHS and REACH compliant manufacturing standards

Applications

• RF signal conditioning systems
• Microwave communication infrastructure
• Test and measurement equipment

Procurement Notes

Verify the exact part number ZVBP-3875-S+ against official Mini-Circuits documentation to ensure authenticity. Confirm that the SMA connector type and QZ2439 package match your system requirements. Check for RoHS and REACH compliance status if environmental regulations apply to your deployment. Ensure the 50 Ohm impedance aligns with your circuit design specifications before procurement.

Selection Notes

Select this component when a fixed center frequency of 3875 MHz with a 60 MHz bandwidth is required. The cavity design offers superior performance compared to planar filters in specific RF environments. Ensure the SMA interface matches existing board layouts. Consider the physical dimensions of the QZ2439 case for enclosure integration. Verify thermal management needs as cavity filters may dissipate heat differently than other filter types.

Part Context

Mini-Circuits specializes in RF, IF, and microwave signal processing components. The ZVBP-3875-S+ belongs to their cavity filter series, which is engineered for high-performance applications. This product line supports various industries including telecommunications and industrial automation. The company emphasizes quality control and reliability in its manufacturing processes, positioning these filters for critical signal integrity tasks.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consult Mini-Circuits technical support or updated distributor catalogs for equivalent cavity bandpass filters with similar frequency ranges and impedance characteristics.
