Product Detailed Parameters
- Description：RF FILTER BAND PASS 4GHZ MODULE
- Series：ZVBP-4000
- Mfr：Mini-Circuits
- Package：Tray
- Frequency：4GHz Center
- Bandwidth：6MHz
- Filter Type：Band Pass
- Ripple：-
- Insertion Loss：6.5dB
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Size / Dimension：2.389" L x 0.800" W (60.69mm x 20.32mm)
- Height (Max)：1.101" (27.96mm)
Download product information
Overview

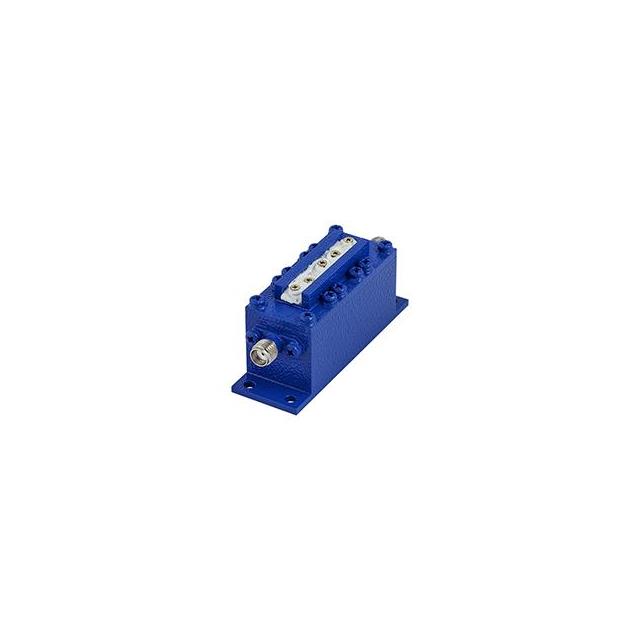

The ZVBP-4000-S+ is a cavity band pass filter manufactured by Mini-Circuits. It operates within a frequency range of 3997 to 4003 MHz, providing a center frequency of approximately 4 GHz with a bandwidth of 6 MHz. The component features a nominal impedance of 50 Ohms and utilizes SMA connectors for signal interfacing. Designed for RF signal conditioning, this unit offers an insertion loss of 6.5 dB. It is housed in the RW2359 case style and complies with RoHS3 standards.
Feature Summary
- Cavity construction for stable RF performance
- SMA connector interface for reliable integration
- RoHS3 compliant environmental standard
Applications
- RF signal conditioning circuits
- Microwave communication systems
- Test and measurement equipment
Procurement Notes
Verify the specific datasheet version and RoHS3 compliance status directly with Mini-Circuits or authorized distributors before procurement. Confirm that the RW2359 package dimensions align with your PCB layout requirements. Ensure SMA connector compatibility with existing system interfaces. Check for any specific export classification restrictions applicable to this microwave component.
Selection Notes
Select this component when a narrow 6 MHz bandwidth around 4 GHz is required. The 50 Ohm impedance matches standard RF systems. Consider the 6.5 dB insertion loss impact on system gain. The cavity design suits applications needing high stability over temperature variations compared to planar filters.
Part Context
This part belongs to Mini-Circuits' passive RF device portfolio, specifically their cavity band pass filter series. These components are designed for frequencies up to 86 GHz. The ZVBP series provides robust signal filtering solutions for commercial and industrial projects requiring precise frequency selection.
Replacement Considerations
The VBFZ-4000-S+ is a related Mini-Circuits band pass filter but covers a wider frequency range of 3500 to 4500 MHz. Verify if the broader bandwidth meets application needs. No other direct substitutes are confirmed in public documentation.
