ZVBP-40600-K+

Overview

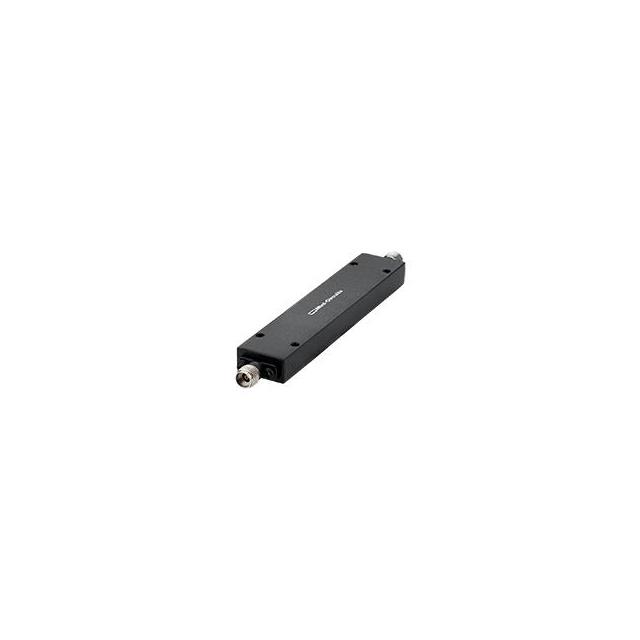

The ZVBP-40600-K+ is a cavity bandpass filter from Mini-Circuits designed for the V-band. It operates with a center frequency of 40.6 GHz and a bandwidth spanning 37,700 to 43,500 MHz. The component maintains a 50 Ohm impedance and utilizes 2.92 mm connectors for termination. It functions within a temperature range of -40°C to +85°C.

Feature Summary

• High-performance cavity construction for stable RF filtering
• Precision V-band frequency selection
• Integrated connector interface

Applications

• Microwave communication systems
• Test and measurement instrumentation
• Point-to-point radio links

Procurement Notes

Verify the specific datasheet revision and connector tolerance before integration. Confirm that the 2.92 mm mating requirements align with system interconnects. Check current supply status as availability may fluctuate. Ensure environmental ratings meet operational thermal constraints.

Selection Notes

Select this model when precise V-band filtering is required. Consider the physical size and connector type for PCB or chassis layout. Evaluate insertion loss specifications against system noise budget requirements. Compare against alternative cavity designs for space constraints.

Part Context

This component belongs to the ZVBP series of cavity bandpass filters. These units are engineered for high selectivity and power handling in microwave applications. The series provides reliable signal conditioning across various V-band frequencies.

Replacement Considerations

The ZVBP-40600-V+ serves as an alternative variant within the same product family. Verify connector compatibility and exact electrical specifications before substitution.
