ZVBP-4300-S+

Overview

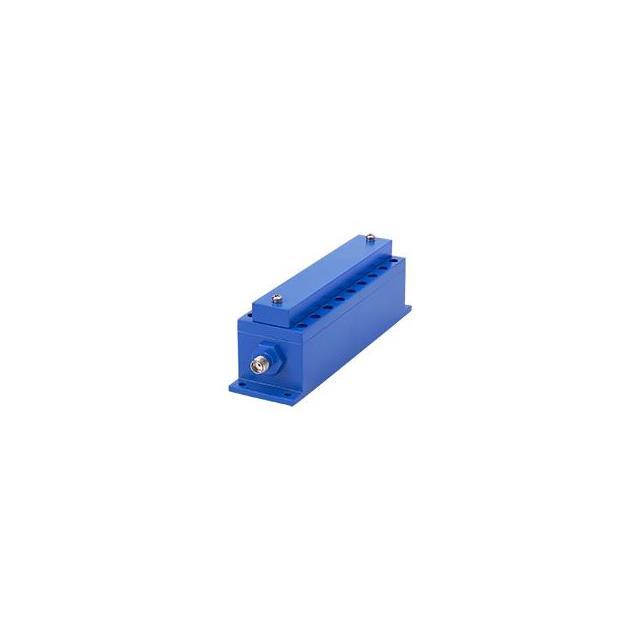

The ZVBP-4300-S+ is a signal conditioning cavity band pass filter manufactured by Mini-Circuits. It operates within a frequency range of 4250 to 4350 MHz with a 50 Ohm impedance. The device features SMA connectors and utilizes the ME1656 case style. Typical insertion loss across the full band is specified at 1.5 dB. This component is designed for precise RF signal filtering applications requiring stable performance in defined frequency bands.

Feature Summary

• Cavity construction for high selectivity
• SMA connector interface
• 50 Ohm system impedance

Applications

• RF signal conditioning
• Wireless communication systems
• Test and measurement equipment

Procurement Notes

Verify the specific datasheet version, such as EDU1629/2, against your design requirements. Confirm that the SMA connector type matches your board layout. Ensure environmental compliance with RoHS3 standards if required for your manufacturing process. Cross-reference the ME1656 package dimensions with your mechanical constraints before finalizing procurement.

Selection Notes

Select this component when a narrow bandpass characteristic around 4.3 GHz is required. The 100 MHz bandwidth suits applications needing rejection of adjacent channel interference. Consider the physical size of the ME1656 case during PCB layout planning. Verify that the 1.5 dB insertion loss meets the link budget requirements of the specific RF chain.

Part Context

This part belongs to the ZVBP series of cavity band pass filters from Mini-Circuits. These components are engineered for robust performance in demanding RF environments. The series offers various center frequencies while maintaining consistent electrical characteristics and mechanical form factors suitable for integration into compact electronic assemblies.

Replacement Considerations

Consult official Mini-Circuits documentation for direct substitutes. No alternative part numbers are confirmed in the provided source material.
