ZVBP-435-S+

Overview

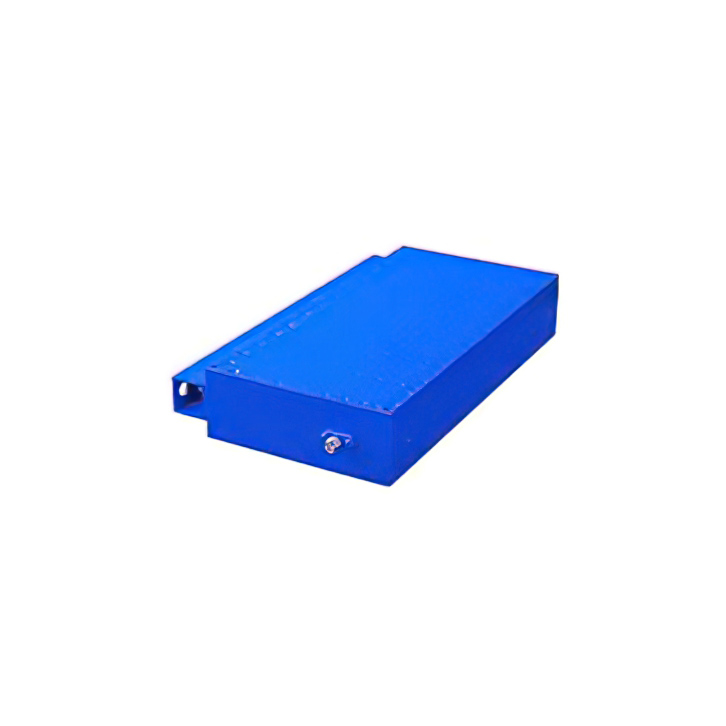

The ZVBP-435-S+ is a coaxial cavity band pass filter from Mini-Circuits, operating with a center frequency of 435 MHz and a bandwidth of 20 MHz (425 to 445 MHz). It features low insertion loss of 0.9 dB typical, good return loss of 18 dB typical, and high rejection of 80 dB typical. Designed for narrow-band applications, it offers excellent selectivity and a low noise floor.

Feature Summary

• Coaxial cavity construction utilizing resonant structures with very high Q factors
• Provides narrow bandwidths as low as 1% with high selectivity
• Ensures excellent low noise floor performance

Applications

• Narrow-band RF signal processing
• High-selectivity filtering in communication systems
• Applications requiring low noise floor environments

Procurement Notes

Verify the specific part number ZVBP-435-S+ against official Mini-Circuits documentation to confirm electrical parameters such as center frequency and bandwidth. Ensure compatibility with system impedance and connector types before procurement.

Selection Notes

Select this component for applications requiring precise narrow-band filtering at 435 MHz. Consider its high Q factor and low insertion loss for sensitive RF chains where signal integrity and noise performance are critical.

Part Context

This component belongs to the ZVBP series of coaxial cavity filters by Mini-Circuits. The series is characterized by designs providing narrow bandwidths with high selectivity and excellent low noise floors, suitable for demanding RF applications.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
