ZVBP-5800-S+

Overview

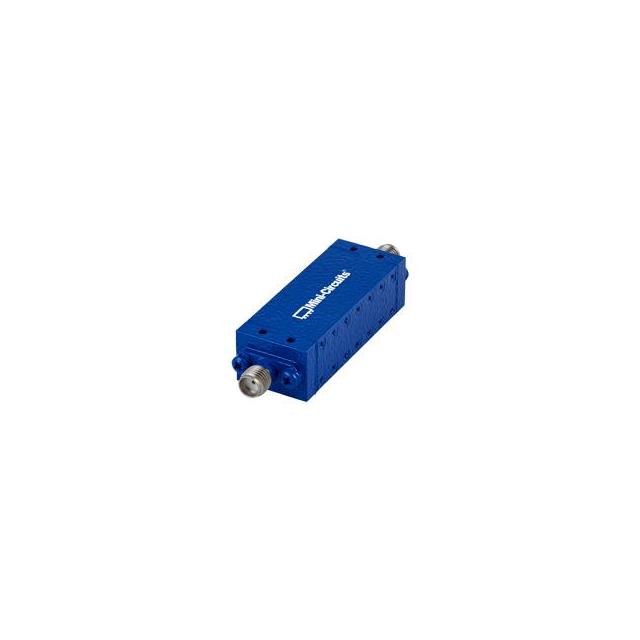

The ZVBP-5800-S+ is a cavity bandpass filter manufactured by Mini-Circuits, designed for RF signal conditioning applications. It operates within a frequency range of 5725 MHz to 5875 MHz, providing a center frequency of approximately 5.8 GHz with a bandwidth of 150 MHz. The component features a 50 Ohm impedance and utilizes SMA connectors for interface connectivity. Constructed as a chassis-mount module, it offers high selectivity and an excellent low noise floor, characteristic of the ZVBP series design which supports narrow bandwidths.

Feature Summary

• High selectivity and narrow bandwidth capability
• Excellent low noise floor performance
• Chassis mount construction for stable integration

Applications

• RF signal conditioning in communication systems
• Microwave component filtering
• IF stage filtering in receiver architectures

Procurement Notes

Verify the specific datasheet version for precise electrical parameters before integration. Confirm that the SMA connector type matches system requirements. Ensure chassis mounting provisions align with enclosure design specifications. Check RoHS and REACH compliance status if required by regulatory standards. Validate operating temperature ranges against environmental conditions.

Selection Notes

Select this component when a narrow bandpass filter around 5.8 GHz is required. Consider the physical dimensions of 46.40mm x 17.75mm for space constraints. Evaluate the need for high selectivity and low noise floor in the application chain. Ensure compatibility with 50 Ohm system impedance. Assess whether chassis mounting is feasible compared to surface mount alternatives.

Part Context

This part belongs to the ZVBP series of cavity filters from Mini-Circuits, known for designs providing bandwidths as narrow as 1%. The series targets applications requiring high performance in RF and microwave frequencies up to 86 GHz. The ZVBP-5800-S+ specifically addresses needs in the 5.8 GHz ISM band region.

Replacement Considerations

Consult official Mini-Circuits documentation for direct substitutes. Verify equivalent frequency ranges and impedance matching. Ensure mechanical compatibility if replacing in existing assemblies.
