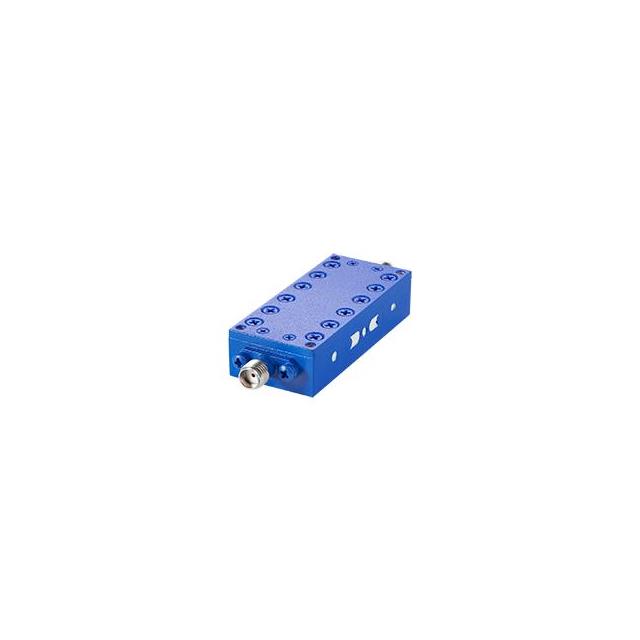

ZVBP-5G-S+

$471.73

Description：RF FILTER BAND PASS 5GHZ MODULE
Series：ZVBP
Mfr：Mini-Circuits
Package：Tray

SKU:81e878e9c15f Category: RF Filters Brand: Mini-Circuits

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF FILTER BAND PASS 5GHZ MODULE
Series：ZVBP
Mfr：Mini-Circuits
Package：Tray
Frequency：5GHz Center
Bandwidth：600MHz
Filter Type：Band Pass
Ripple：-
Insertion Loss：0.7dB
Mounting Type：Chassis Mount
Package / Case：Module
Size / Dimension：2.047" L x 0.807" W (52.00mm x 20.50mm)
Height (Max)：0.580" (14.74mm)

Download product information

ZVBP-5G-S+

Overview

The ZVBP-5G-S+ is a signal conditioning cavity band pass filter manufactured by Mini-Circuits. It operates within a frequency range of 4.7 to 5.3 GHz with a 50 Ohm impedance. The component features a typical insertion loss of 0.4 dB and a typical return loss of 20 dB, ensuring efficient signal transmission. Designed for robust performance, it provides good rejection characteristics outside the passband. The unit complies with RoHS and REACH standards.

Feature Summary

Cavity construction for stable signal conditioning
SMA interface connectors
RoHS and REACH compliance

Applications

RF sensing systems
Automotive connectivity modules
Signal conditioning in RF test equipment

Procurement Notes

Verify the exact part number suffix against official Mini-Circuits documentation to confirm specifications. Ensure compatibility with system impedance requirements. Confirm that the SMA connector type matches the design layout. Check for any specific environmental ratings if used in harsh conditions. Validate compliance certifications required for the target market.

Selection Notes

Select this component when a narrow bandpass filter is needed around the 5 GHz range. Consider the low insertion loss for sensitive receiver chains. Evaluate the physical dimensions against available board space. Assess the thermal stability requirements of the application environment. Compare rejection specs against adjacent channel interference levels.

Part Context

This model belongs to the ZVBP series of cavity band pass filters from Mini-Circuits. These components are designed for high-performance RF applications requiring precise frequency selection. The series offers various center frequencies and bandwidths to suit different communication standards. Cavity technology provides superior Q-factor compared to planar alternatives.

Replacement Considerations

Consult Mini-Circuits official substitution guides for verified equivalents. Ensure replacement parts match the 4.7-5.3 GHz frequency range and 50 Ohm impedance. Verify connector compatibility and mechanical footprint constraints before switching.
