ZVBP-6500-S+

Overview

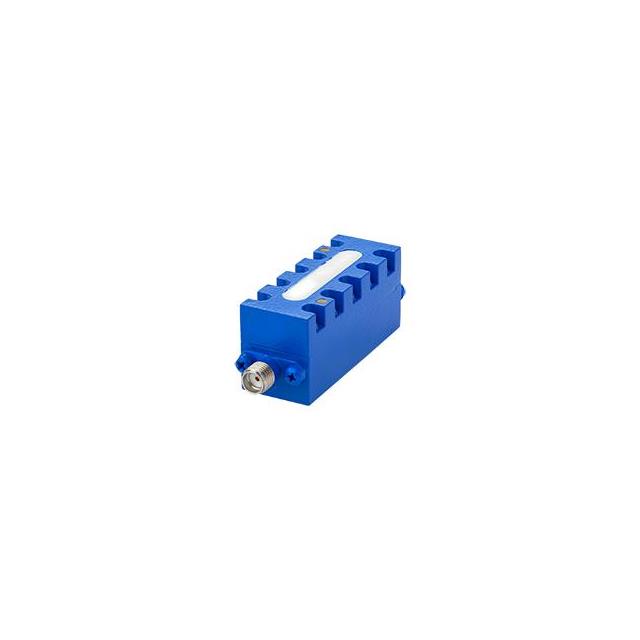

The ZVBP-6500-S+ is a coaxial cavity bandpass filter manufactured by Mini-Circuits. It operates within a frequency range of 6300 to 6700 MHz, providing a center frequency of 6500 MHz and a bandwidth of 400 MHz. The component features a 50 Ohm impedance and utilizes SMA connectors for interface connectivity. Designed as a signal conditioning module, it employs resonant structures with high Q factors to achieve narrow-band performance suitable for RF applications.

Feature Summary

• Coaxial cavity construction for high Q factor resonance
• SMA connector interface for standard integration
• Narrow-band signal conditioning capability

Applications

• RF signal conditioning modules
• Microwave communication systems
• Test and measurement equipment

Procurement Notes

Verify the specific datasheet version and mechanical drawings before procurement. Confirm that the SMA connector type matches system requirements. Ensure environmental ratings align with operational conditions. Cross-reference part numbers to avoid confusion with similar models in the ZVBP series.

Selection Notes

Select this component when a fixed 6300-6700 MHz passband is required. The 50 Ohm impedance must match the system design. Consider the physical dimensions associated with the WM3323 case style for board layout. Verify compatibility with existing SMA interconnects.

Part Context

This model belongs to the ZVBP series of coaxial cavity filters from Mini-Circuits. These filters are designed for narrow-band applications requiring high selectivity. The series typically offers various center frequencies while maintaining consistent impedance and connector types across the lineup.

Replacement Considerations

Consult official Mini-Circuits documentation for direct substitutes. Verify electrical specifications such as center frequency and bandwidth match exactly. Check mechanical compatibility including connector type and case style before substitution.
