ZVBP-7916R25-S+

Overview

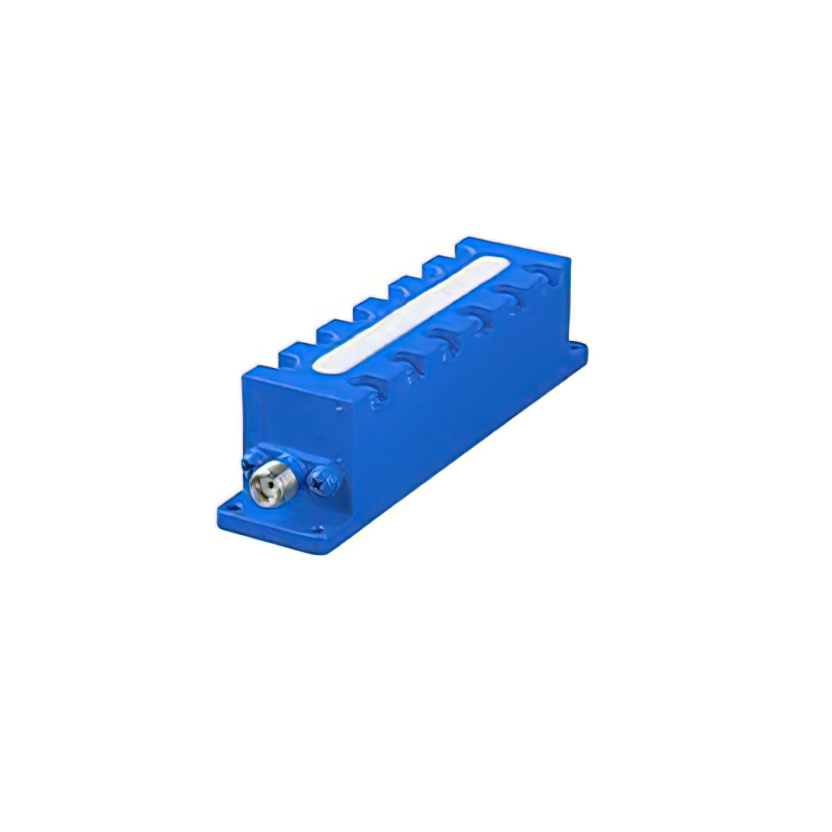

The ZVBP-7916R25-S+ is a cavity band pass filter manufactured by Mini-Circuits. It operates within a frequency range of 7682.5 MHz to 8150 MHz, providing a bandwidth of 467.5 MHz with a center frequency of 7916 MHz. The component features an insertion loss of 0.9 dB and maintains a system impedance of 50 Ohms. It utilizes SMA connectors for in-line module integration.

Feature Summary

• Low insertion loss combined with excellent power handling makes them well-suited for transmitter and receiver front end
• Advanced filter design and construction

Applications

• Transmitter front ends
• Receiver front ends

Procurement Notes

Verify the specific part number ZVBP-7916R25-S+ against official Mini-Circuits documentation to confirm technical specifications. Ensure compatibility with 50 Ohm systems and SMA connector interfaces before procurement. Cross-reference datasheet parameters such as frequency range and insertion loss to validate suitability for the intended RF application.

Selection Notes

Select this component for applications requiring precise bandpass filtering in the 7.6 GHz to 8.1 GHz range. Consider the 0.9 dB insertion loss and cavity construction for signal integrity. Ensure the SMA interface aligns with existing circuit board layouts and that the power handling capabilities meet system requirements for transmitter or receiver front-end stages.

Part Context

This model belongs to the Mini-Circuits ZVBP series of cavity band pass filters. These components are designed for high-performance RF applications, offering robust construction and advanced filter characteristics. The series supports various frequency ranges and impedance configurations, catering to diverse communication system needs.

Replacement Considerations

Public confirmed substitute part numbers only; omit otherwise.
