ZVBP-9R6G-S+

Overview

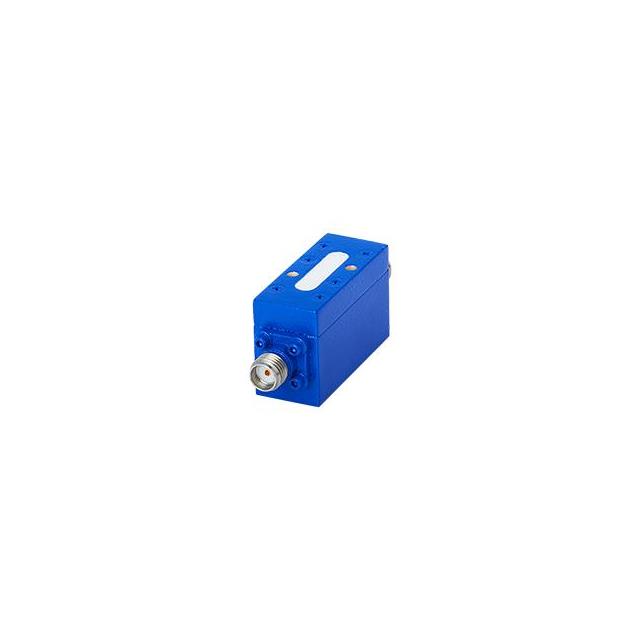

The ZVBP-9R6G-S+ is a cavity band pass filter manufactured by Mini-Circuits, designed for RF signal conditioning applications. It operates within a frequency range of 9550 to 9650 MHz, providing a center frequency of 9.6 GHz and a bandwidth of 100 MHz. The component features a 50 Ohm impedance and utilizes SMA connectors for interface connectivity. Housed in the UA2888 case style, this module exhibits an insertion loss of 2 dB. The design emphasizes high selectivity and a low noise floor, suitable for precise frequency selection in microwave systems.

Feature Summary

• Provides narrow bandwidth filtering with high selectivity
• Maintains excellent low noise floor performance
• Utilizes robust cavity construction for stable operation

Applications

• RF signal conditioning modules
• Microwave communication systems
• Frequency selective filtering applications

Procurement Notes

Verify the specific ordering suffix to ensure correct connector type and termination specifications match system requirements. Confirm that the UA2888 mechanical dimensions are compatible with the intended enclosure or mounting structure. Check current availability status as lead times may vary. Ensure environmental operating conditions align with the component's rated specifications for reliable long-term performance in the target application.

Selection Notes

Select this component when a fixed center frequency of 9.6 GHz with a 100 MHz bandwidth is required. The 50 Ohm impedance matches standard RF transmission lines. Consider the 2 dB insertion loss impact on system gain budget. The SMA interface dictates cable and adapter compatibility. Evaluate the physical size constraints against the UA2888 package dimensions before integration into the final assembly design.

Part Context

This part belongs to the ZVBP series of cavity band pass filters from Mini-Circuits. The series is characterized by designs capable of achieving bandwidths as narrow as 1% while maintaining high selectivity. These filters are engineered for applications requiring precise frequency definition and rejection of out-of-band signals in demanding RF environments.

Replacement Considerations

No public confirmed substitute part numbers are available for direct replacement.
