ZVBP-K22R5G+

Overview

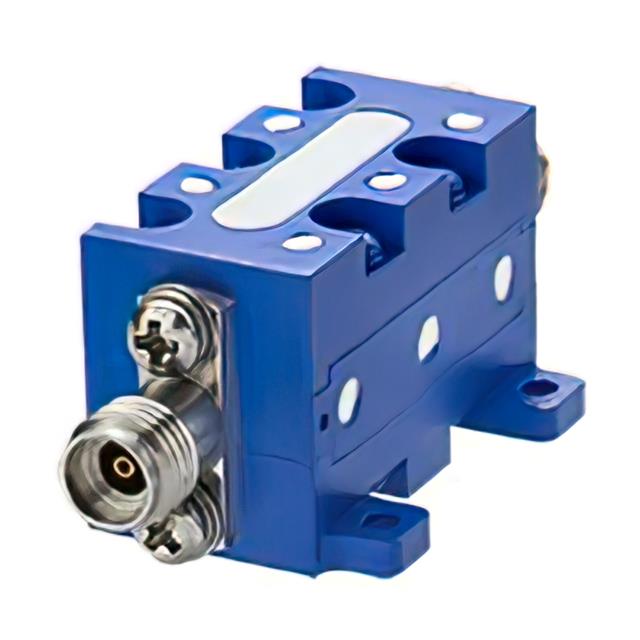

The ZVBP-K22R5G+ is a coaxial cavity bandpass filter designed for the 22 to 23 GHz frequency range. It features a 50Ω impedance and utilizes 2.92mm female connectors within a YJ3430 case style. The component exhibits a typical insertion loss of 1dB, a return loss of 25dB, and a rejection floor of 90dB. Its stopband extends up to 40 GHz, providing high selectivity and low noise characteristics suitable for narrowband applications.

Feature Summary

• High Q-value resonant structure for narrow bandwidth and high selectivity
• Low insertion loss with excellent signal transmission efficiency
• Superior rejection floor ensuring minimal interference in adjacent bands
• Robust chassis mount design for stable performance

Applications

• Narrowband RF systems requiring high selectivity
• Microwave communication infrastructure
• Test and measurement equipment signal conditioning
• Electronic warfare and radar subsystems

Procurement Notes

Verify that the required connector type matches the 2.92mm female specification documented for this part number. Confirm that the operating environment supports the chassis mount configuration. Ensure system impedance requirements align with the 50Ω design. Review the full datasheet for detailed mechanical dimensions and thermal specifications before integration into the final assembly.

Selection Notes

Select this component when application demands include operation within the 22 to 23 GHz spectrum with strict filtering requirements. The high rejection floor of 90dB makes it suitable for environments with significant out-of-band interference. Consider the physical constraints of the YJ3430 case style and the need for 2.92mm interconnects during system layout planning.

Part Context

This model belongs to Mini-Circuits' line of coaxial cavity filters, which are engineered for high-performance radio frequency applications. These filters utilize precision mechanical structures to achieve superior electrical characteristics compared to planar technologies. The product series is designed to meet the rigorous demands of modern microwave and millimeter-wave systems.

Replacement Considerations

Consult official Mini-Circuits documentation for direct cross-reference part numbers. Verify compatibility regarding center frequency, bandwidth, and connector interface before substituting.
