ZVBP-K27G+

Overview

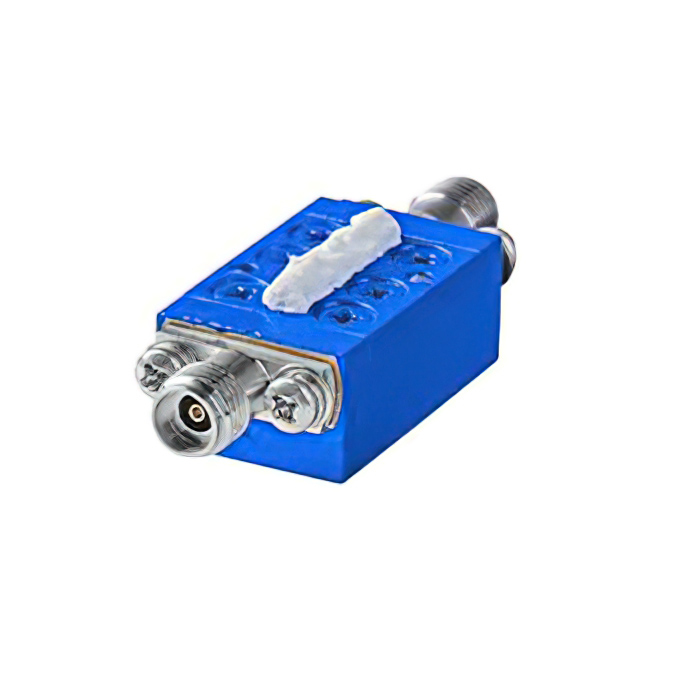

The ZVBP-K27G+ is a cavity band pass filter from Mini-Circuits, operating within the 24 to 30 GHz frequency range. It features a center frequency of 27 GHz with a bandwidth of 6 GHz and a nominal impedance of 50 Ohms. The component utilizes a 2.92mm connector interface for in-line module integration. Typical performance specifications include an insertion loss of 0.4 dB, a return loss of 14 dB, and high rejection capabilities reaching 70 dB.

Feature Summary

• High-Q resonant structures designed for narrow-band applications
• High-selectivity filtering characteristics
• Low insertion loss for efficient signal transmission
• High rejection capability for interference suppression

Applications

• Microwave communication systems
• Test and measurement equipment
• Radar systems

Procurement Notes

Verify the specific datasheet version for the ZVBP-K27G+ to confirm exact connector gender and mechanical dimensions, as variations may exist. Ensure compatibility with 2.92mm mating interfaces. Confirm RoHS and REACH compliance status if required by your manufacturing standards. Cross-reference part numbers carefully to distinguish between similar cavity filter models in the ZVBP series.

Selection Notes

Select this component when a narrow-bandpass response is required in the K-band spectrum. The 2.92mm interface ensures compatibility with standard microwave test fixtures and modules. Consider the typical 0.4 dB insertion loss and 70 dB rejection when designing for high-isolation requirements. Verify that the 24-30 GHz passband aligns precisely with the system's operational frequency needs.

Part Context

This component belongs to Mini-Circuits' ZVBP series of cavity band pass filters. These filters are engineered using resonant structures with very high Q factors, making them suitable for demanding RF and microwave applications. The series offers various center frequencies and bandwidth options, all maintaining consistent impedance and connector standards for modular integration.

Replacement Considerations

Consult official Mini-Circuits documentation for direct substitutes. Similar models in the ZVBP series, such as those with different center frequencies, may serve as alternatives if frequency ranges differ. Ensure any replacement maintains the 2.92mm interface and 50 Ohm impedance for seamless integration.
