ZVBP-V40R5G+

Overview

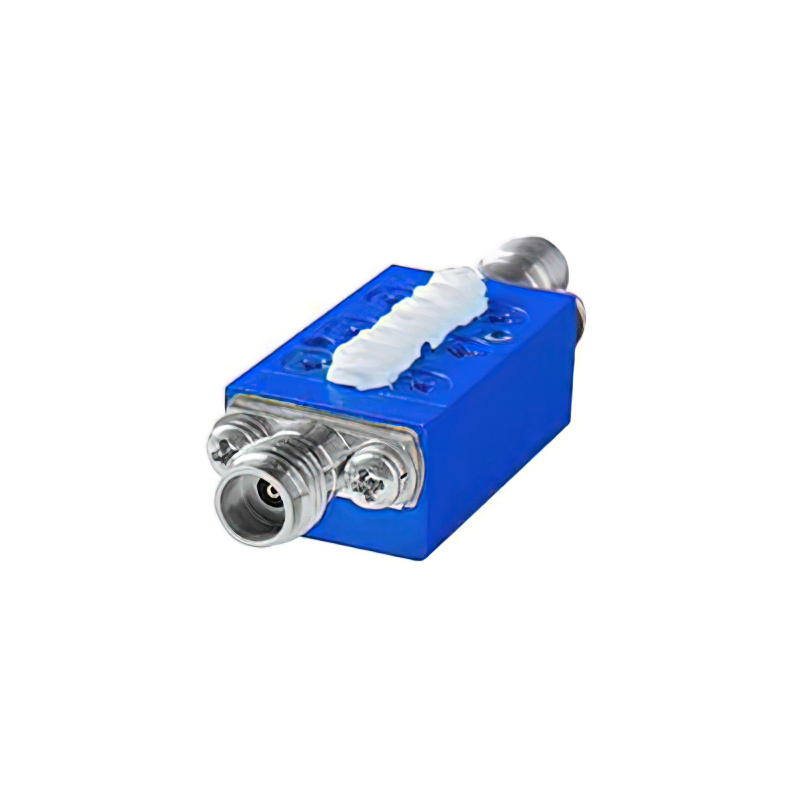

The ZVBP-V40R5G+ is a cavity band pass filter manufactured by Mini-Circuits, designed for high-frequency RF applications. It operates within a frequency range of 37 GHz to 44 GHz, providing a center frequency of 40.5 GHz and a bandwidth of 7 GHz. The component features a 2.4mm in-line module package with a standard 50 Ohm impedance. Typical insertion loss is specified at 1.2 dB, ensuring efficient signal transmission within the designated passband.

Feature Summary

• Utilizes robust cavity construction for stable performance in millimeter-wave environments
• Provides precise bandpass filtering between 37 GHz and 44 GHz
• Designed with a 2.4mm in-line module interface for direct integration

Applications

• Millimeter-wave communication systems
• RF test and measurement equipment
• Satellite communication links

Procurement Notes

Verify the specific suffix 'V40R5G+' against the manufacturer's current datasheet to confirm exact electrical tolerances and mechanical dimensions. Ensure compatibility with 2.4mm connectors in the system design. Confirm RoHS compliance status if required for specific regulatory standards before finalizing procurement orders.

Selection Notes

Select this component when a narrow bandpass filter is required specifically for the 37-44 GHz range. The 2.4mm interface dictates connector compatibility requirements. Consider the typical insertion loss of 1.2 dB for link budget calculations. This cavity-based solution offers higher power handling and stability compared to planar technologies at these frequencies.

Part Context

This part belongs to Mini-Circuits' ZVBP series of cavity band pass filters. These components are engineered for high-reliability applications where size and weight are critical but superior performance is needed over surface-mount alternatives. The series supports various frequency bands across the microwave and millimeter-wave spectrum.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult Mini-Circuits engineering support for cross-reference options if alternative sourcing is required.
