ZVBP-V48R5G+

Overview

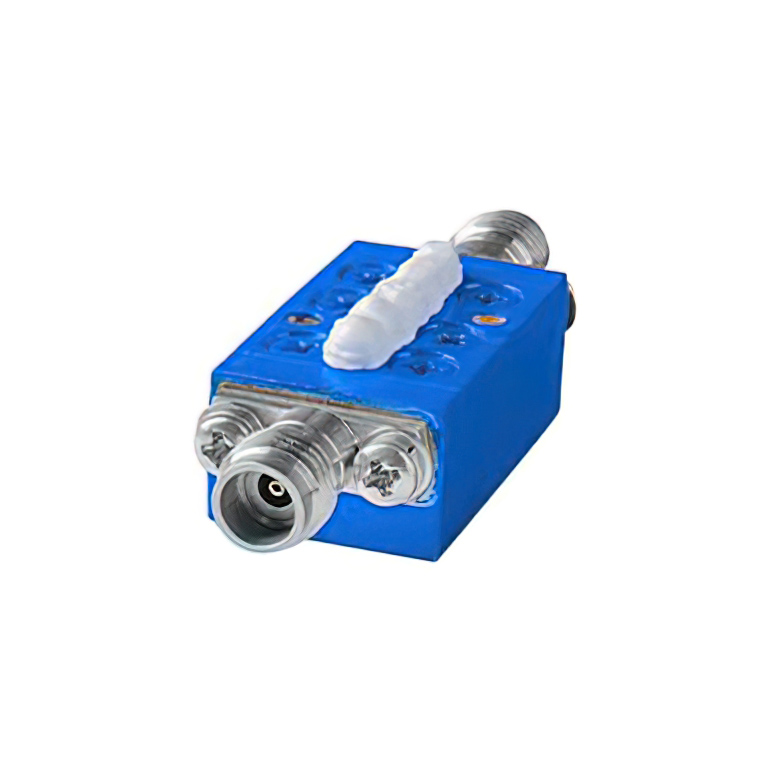

The ZVBP-V48R5G+ is a signal conditioning cavity band pass filter manufactured by Mini-Circuits. It operates within the millimeter-wave frequency range, specifically covering a passband from 47 to 50 GHz with a center frequency of 48.5 GHz. The component features a 3 GHz bandwidth and maintains a characteristic impedance of 50 Ohms. It utilizes a 2.4mm in-line module interface for connection. The filter exhibits an insertion loss of 1.3 dB, ensuring efficient signal transmission within its designated operational spectrum.

Feature Summary

• Cavity construction designed for high-performance signal conditioning in the millimeter-wave spectrum
• In-line module configuration utilizing a 2.4mm interface for precise RF connectivity
• Narrowband filtering capability centered at 48.5 GHz with defined 3 GHz bandwidth

Applications

• Millimeter-wave communication systems requiring specific frequency selection
• Signal conditioning stages in RF test and measurement equipment
• Integrated assemblies for frequency upconversion or downconversion modules

Procurement Notes

Verify the exact datasheet version when sourcing, as specifications may be updated. Confirm that the 2.4mm interface compatibility matches your system requirements. Ensure environmental conditions align with the absolute maximum ratings provided in the official Mini-Circuits documentation before integration into final designs.

Selection Notes

Select this component when a fixed center frequency of 48.5 GHz is required for mmWave applications. The 2.4mm interface dictates mechanical compatibility constraints. Consider the 1.3 dB insertion loss impact on system noise figure. This cavity filter is suitable where high selectivity and stable performance are prioritized over tunability in the 47-50 GHz range.

Part Context

This part belongs to the ZVBP series of cavity bandpass filters from Mini-Circuits. The series has been expanded to encompass the millimeter-wave range, providing solutions for next-generation wireless applications. The ZVBP-V48R5G+ represents a specific frequency variant within this broader family of signal conditioning components designed for high-frequency RF environments.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires matching the 48.5 GHz center frequency, 3 GHz bandwidth, and 2.4mm interface specifications exactly.
