ZX75BS-140-S+

Overview

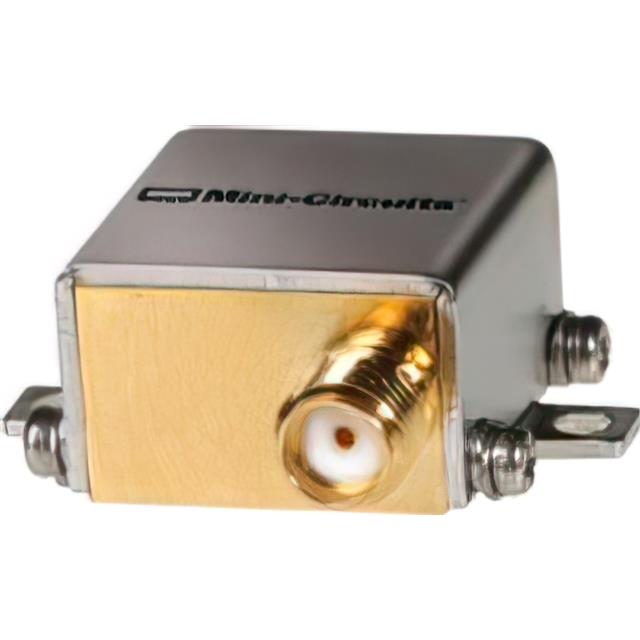

The ZX75BS-140-S+ is a lumped LC band stop filter manufactured by Mini-Circuits. It operates within a frequency range of 127.25 MHz to 152.75 MHz. The device features a connectorized package with SMA interfaces and maintains a 50 Ohm impedance. It is designed for rugged performance in RF applications.

Feature Summary

• Provides effective signal rejection within the specified stopband frequencies
• Constructed in a compact, rugged connectorized housing
• Utilizes lumped LC technology for stable filtering characteristics

Applications

• RF signal conditioning systems
• Microwave component integration
• Frequency selective filtering applications

Procurement Notes

Verify the specific datasheet version and mechanical drawings prior to procurement. Confirm that the SMA connector orientation and mounting requirements align with your system design. Ensure environmental specifications meet operational needs.

Selection Notes

Select this component when a fixed band stop response between 127.25 MHz and 152.75 MHz is required. Consider the connectorized form factor for easy integration into test setups or permanent installations requiring robust physical connections.

Part Context

This part belongs to the ZX75 series of signal conditioning components from Mini-Circuits. The series includes various filter types designed for RF and microwave frequencies up to 86 GHz. This specific model addresses notch filtering needs in the VHF/UHF range.

Replacement Considerations

Consult official Mini-Circuits documentation for direct substitutes. Verify electrical compatibility including center frequency and bandwidth before substituting.
