ZX75HP-2400-S+

Overview

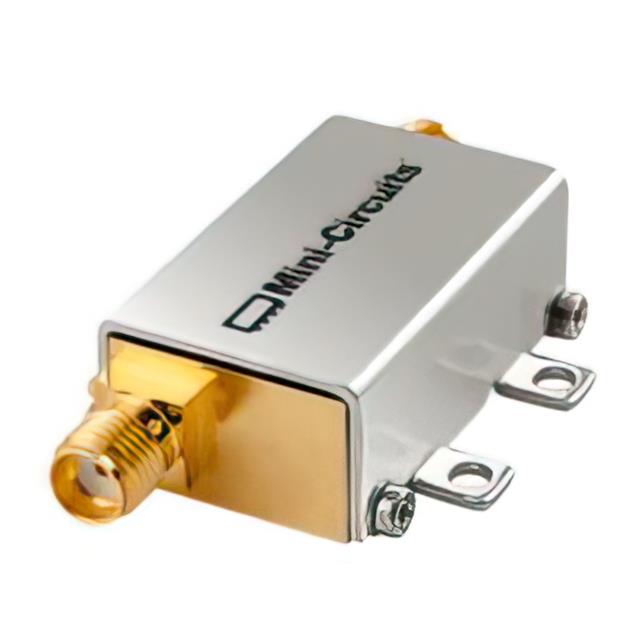

The ZX75HP-2400-S+ is a high-pass filter manufactured by Mini-Circuits, designed for RF applications. It operates within a frequency range of 2400 MHz to 5925 MHz with a center frequency of 4162.5 MHz. The component features a 50 Ohm impedance and utilizes SMA termination style. It has an average input power rating of 2.0 Watts and a physical height of 11.68 mm. The device is compliant with RoHS and REACH standards and functions within a minimum operating temperature of -40°C.

Feature Summary

• Provides sharp rejection characteristics for signal conditioning
• Utilizes a rugged connectorized package design
• Offers low insertion loss performance in the passband

Applications

• RF signal conditioning systems
• Microwave communication equipment
• IF filtering applications

Procurement Notes

Verify the specific datasheet version and mechanical drawings before integration. Confirm that the SMA termination style matches your system interface requirements. Ensure the 2.0 Watt average input power rating exceeds your operational signal levels to prevent damage. Check compliance documentation for RoHS and REACH if required by your manufacturing standards.

Selection Notes

Select this component when a high-pass response between 2400 MHz and 5925 MHz is required. The 50 Ohm impedance makes it suitable for standard RF transmission lines. Consider the rugged connectorized package for durability in demanding environments. Evaluate the -40°C minimum operating temperature against your environmental conditions.

Part Context

This part belongs to the ZX75HP series from Mini-Circuits, which specializes in RF, IF, and microwave components. The series covers frequencies from DC to 86GHz. The ZX75HP-2400-S+ specifically addresses high-frequency filtering needs using lumped LC technology. It is categorized as a signal conditioning component within the manufacturer's portfolio.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
