ZX75LP-2000-S+

Overview

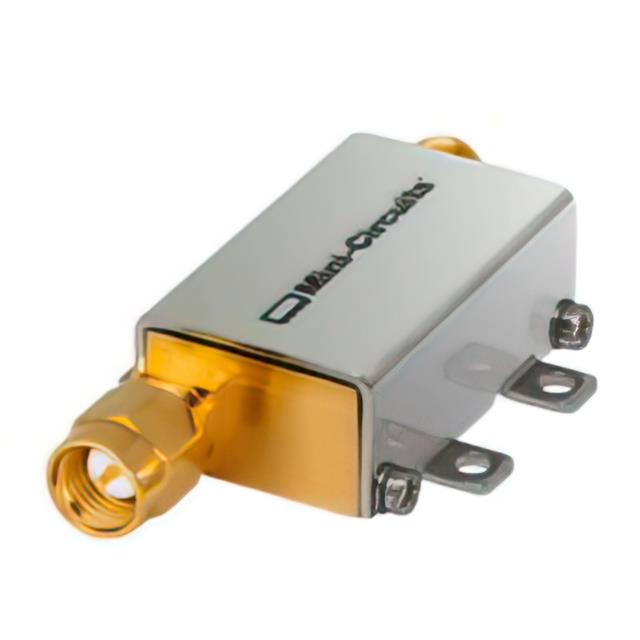

The ZX75LP-2000-S+ is a lumped LC low pass filter manufactured by Mini-Circuits. It operates from DC to 2000 MHz with a 50 Ohm impedance. The device features SMA connectors and an insertion loss of 1.3 dB. It functions within a temperature range of -40°C to +85°C.

Feature Summary

• Lumped LC architecture for signal conditioning
• Connectorized package for easy interfacing
• Suitable for test setups

Applications

• Test setups
• Signal conditioning in RF systems

Procurement Notes

Verify the specific datasheet version and electrical performance graphs directly from Mini-Circuits official documentation before integration. Confirm that the SMA connector interface and 50 Ohm impedance align with your system requirements. Ensure environmental ratings meet operational needs.

Selection Notes

Select this component when a low pass filter covering DC to 2000 MHz is required. The 50 Ohm impedance matches standard RF systems. The connectorized design facilitates direct integration into test benches or modular RF chains without additional mounting hardware.

Part Context

This part belongs to the ZX75LP series, which offers various cutoff frequencies. The ZX75LP-2000-S+ specifically targets applications requiring filtering up to 2000 MHz. It shares the same physical form factor and connector type as other models in the series, differing primarily in frequency response specifications.

Replacement Considerations

Check Mini-Circuits documentation for alternative models within the ZX75LP series with different cutoff frequencies if the 2000 MHz limit is insufficient or excessive.
