1-1609990-1

Overview

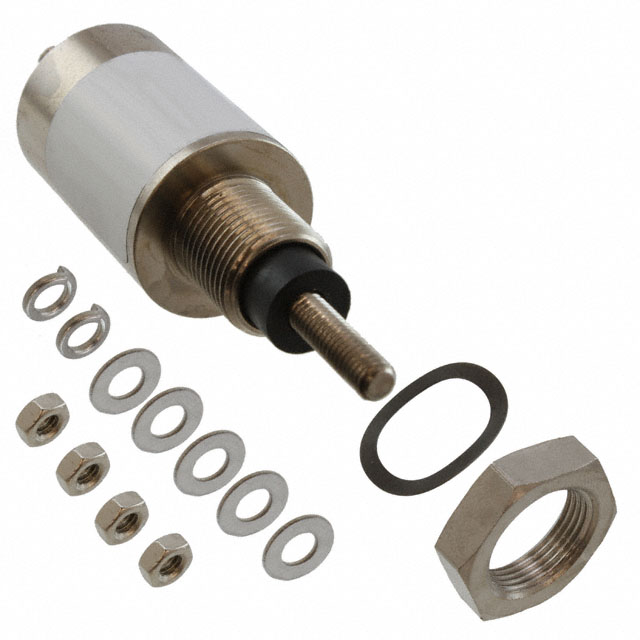

The TE Connectivity Corcom Filters 1-1609990-1 is a feedthrough capacitor designed for electromagnetic interference suppression. It features a capacitance of 0.033 µF and a rated voltage of 250V AC. The component supports a current rating of 32 A with an insertion loss of 48dB at 100MHz. It utilizes an axial package with threaded terminals (M4) and measures 20.00mm in diameter by 30.00mm in length. Operating temperatures range from -40°C to 60°C, and it holds a Y2 safety classification.

Feature Summary

• Provides high-current EMI suppression through feedthrough architecture
• Features axial construction with threaded mounting terminals
• Includes Y2 safety insulation rating for medical applications

Applications

• Medical device power input filtering
• Industrial equipment EMI suppression
• Power supply line conditioning

Procurement Notes

Verify the exact part number against official TE Connectivity documentation before procurement. Confirm that the specific suffix or base number matches the required capacitance and current ratings. Check for obsolescence status as some variants in this series may be discontinued. Ensure compatibility with existing panel cutouts and thread specifications.

Selection Notes

Select this component when a 32 A current rating and 0.033 µF capacitance are required for axial feedthrough applications. Consider the M4 thread size for mounting compatibility. Evaluate the 250V AC rating against system voltage requirements. Verify that the Y2 safety class meets regulatory standards for the intended enclosure type.

Part Context

This component belongs to the TE Connectivity Corcom AFC series of EMI feedthrough filters. These filters are engineered for robust noise reduction in high-current environments. The series offers various capacitance values and current ratings to suit different power line configurations while maintaining compact axial dimensions.

Replacement Considerations

Public confirmed substitute part numbers: None identified.
