Product Detailed Parameters
- Description：CONN PCI EXP FMALE 36POS 0.039
- Series：-
- Mfr：Amphenol ICC (FCI)
- Package：Tape & Reel (TR),Tape & Reel (TR)
- Card Type：PCI Express™
- Gender：Female
- Number of Positions/Bay/Row：-
- Number of Positions：36
- Card Thickness：0.062" (1.57mm)
- Number of Rows：2
- Pitch：0.039" (1.00mm)
- Read Out：Dual
- Features：Board Guide, Locking Ramp, Pick and Place, Solder Retention
- Mounting Type：Surface Mount
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：30.0µin (0.76µm)
- Contact Type：Cantilever
- Color：Black
- Flange Feature：-
- Operating Temperature：-55°C ~ 85°C
Download product information
Overview

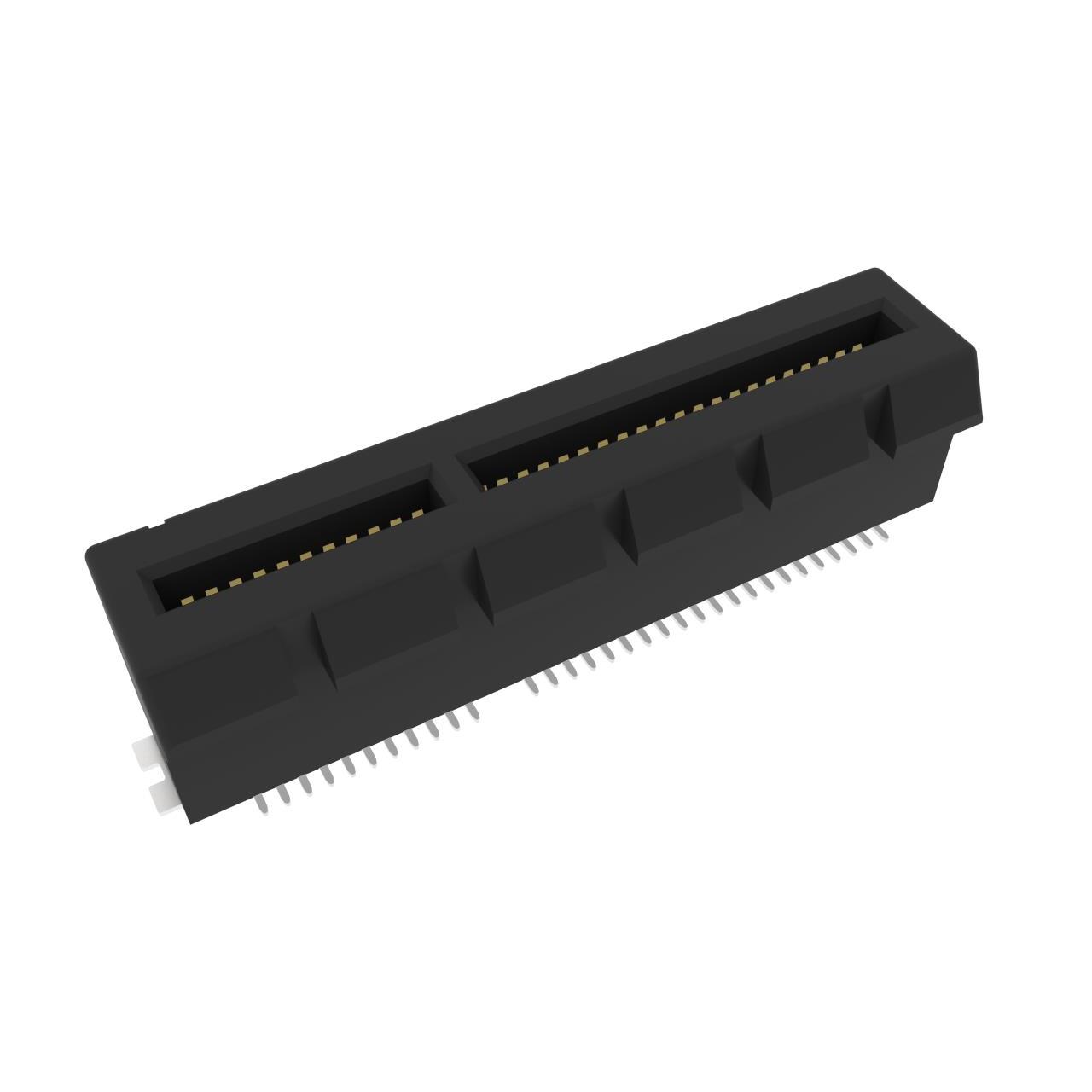

The Amphenol ICC (FCI) 10061913-100RLF is a PCI Express card edge connector designed for vertical surface mount applications. It features 36 positions with a 1.00 mm pitch, suitable for high-density interconnects. The component utilizes gold-plated copper alloy contacts to ensure reliable signal transmission and corrosion resistance. Rated for 1.1 A current per contact, it supports PCB thicknesses of 1.56 mm. The housing is constructed from nylon, providing mechanical stability and insulation.
Feature Summary
- Vertical surface mount design for space-efficient PCB integration
- Gold-plated copper alloy contacts for enhanced conductivity and durability
- Nylon housing material offering robust mechanical support and electrical insulation
Applications
- PCI Express Gen 3 card edge connections
- High-speed data transfer interfaces in computing systems
- Server and storage backplane assemblies
Procurement Notes
Verify the specific ordering suffix against the manufacturer's official datasheet to confirm pin configuration, plating thickness, and RoHS compliance status. Ensure compatibility with the target PCB stack-up and mating card dimensions before finalizing procurement orders to prevent integration issues.
Selection Notes
Select this component when a low-profile, vertical PCI Express interface is required. Consider the 1.00 mm pitch and 36-position count for density requirements. Verify that the 1.56 mm PCB thickness capability aligns with the system board design specifications.
Part Context
This part belongs to the Amphenol FCI PCI Express connector family, widely used in enterprise computing infrastructure. Amphenol ICC acquired FCI to expand its portfolio in high-speed interconnect solutions, integrating advanced manufacturing capabilities for signal integrity and power management applications.
Replacement Considerations
Cross-reference with other 36-position vertical PCI Express connectors from Amphenol or competitors. Ensure identical pitch, mounting style, and electrical ratings before substituting to maintain mechanical fit and performance standards.
