10115859-004LF

Overview

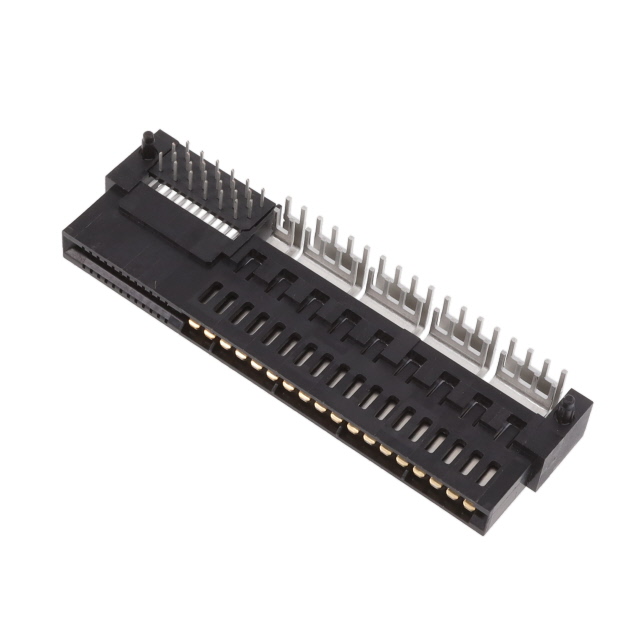

The Amphenol ICC (FCI) 10115859-004LF is a dual-edge female connector designed for robust edge card applications. It features 60 positions, configured as 24 signal and 36 power contacts, arranged in a double-row structure. The housing is black GXT™ material, with gold or gold/gXT contact plating options. Operating temperature ranges from -55°C to 105°C. Mounting type is through-hole right angle. Series: HPCE®.

Feature Summary

• Dual-edge design for secure edge card connection
• Mixed signal and power contact configuration
• Through-hole right-angle mounting
• High-temperature resistant GXT™ housing

Applications

• Edge card interconnects requiring mixed signal/power
• Industrial control systems
• Telecommunications equipment
• Data processing hardware

Procurement Notes

Verify the specific contact plating variant (gold vs. gold/GXT) required for your application, as this affects performance characteristics. Confirm that the through-hole right-angle mounting style aligns with your PCB layout constraints. Ensure the operating temperature range of -55°C to 105°C meets your environmental specifications. Check for any recent product change notices or lifecycle status updates directly from the manufacturer before finalizing procurement.

Selection Notes

Select this component when a dual-edge female connector is needed for high-density signal and power transmission in edge card applications. The 60-position count provides a balanced mix of 24 signal and 36 power lines. Consider the right-angle through-hole mounting for space-constrained vertical board connections. Evaluate the GXT™ housing for superior thermal stability compared to standard materials if operating near the upper temperature limit.

Part Context

This part belongs to the HPCE® series by Amphenol ICC (FCI), specializing in high-performance edge connectors. The series is known for reliability in demanding environments. The 10115859-004LF specifically addresses applications needing both signal integrity and power delivery in a compact dual-row format. It represents a solution for complex board-to-board or card-to-backplane interfaces where space efficiency is critical.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model. Direct replacement requires matching the 60-position dual-edge female configuration, right-angle through-hole mounting, and compatible housing material properties. Verify pinout compatibility and mechanical dimensions before considering alternative series.

FAQ

What is the contact configuration for the 10115859-004LF?

It has 60 positions total, split into 24 signal and 36 power contacts.

Is this connector suitable for high-temperature environments?

Yes, it operates within a temperature range of -55°C to 105°C using GXT™ housing material.
