10116809-002LF

Overview

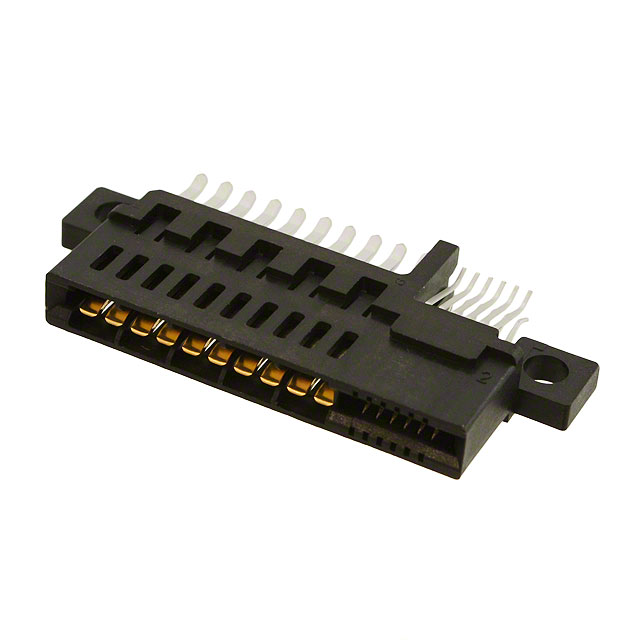

The Amphenol ICC (FCI) 10116809-002LF is a dual-sided card edge connector designed for straddle mount installation. It features 32 positions, configured as 20 signal and 12 power contacts. The connector utilizes female terminals made of copper alloy with gold or GXT™ gold plating. It accommodates a board thickness of 0.062 inches (1.57 mm). The pitch spacing is available in 2.54 mm and 1.27 mm configurations. The housing is constructed from black thermoplastic reinforced with glass fiber.

Feature Summary

• Dual-sided female contact arrangement for secure card edge engagement
• Mixed signal and power pin configuration to support diverse circuit requirements
• Straddle mount design ensures stable mechanical fixation on the PCB
• Gold or GXT™ terminal plating provides reliable conductivity and corrosion resistance

Applications

• Industrial control system interface modules
• Telecommunications equipment backplanes
• High-density data processing cards
• Automotive electronic control units

Procurement Notes

Verify the specific pitch requirement, as this component supports both 2.54 mm and 1.27 mm spacings. Confirm that the terminal plating matches the application's electrical needs, choosing between standard gold or GXT™ variants. Ensure the host PCB is compatible with the straddle mount style and specified 0.062-inch board thickness. Check current availability status as lead times may vary by manufacturer batch.

Selection Notes

Select this connector when a robust dual-sided interface is required for mixed signal and power applications. The choice depends on verifying the correct pitch dimension against the target card layout. Consider the mechanical stability provided by the straddle mount for high-vibration environments. Evaluate the thermal and electrical performance characteristics of the available terminal plating options to ensure long-term reliability under operating conditions.

Part Context

This component belongs to the FCI card edge connector family, specifically engineered for high-reliability interconnects. It serves as a critical link between peripheral cards and main system boards. The design emphasizes durability and consistent electrical performance in demanding industrial and commercial settings.

Replacement Considerations

No public confirmed substitute part numbers are available in the source documentation.
