Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 60POS
- Series：HPCE®
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：18; 12
- Number of Positions：60 (24 + 36 Power)
- Card Thickness：0.062" (1.57mm)
- Number of Rows：2
- Pitch：-
- Read Out：Dual
- Features：Card Extender
- Mounting Type：Board Edge, Straddle Mount
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：-
- Contact Finish Thickness：-
- Contact Type：-
- Color：Black
- Flange Feature：Straddle Mount Opening, Unthreaded, 0.154" (3.90mm)
- Operating Temperature：-55°C ~ 105°C
Download product information
Overview

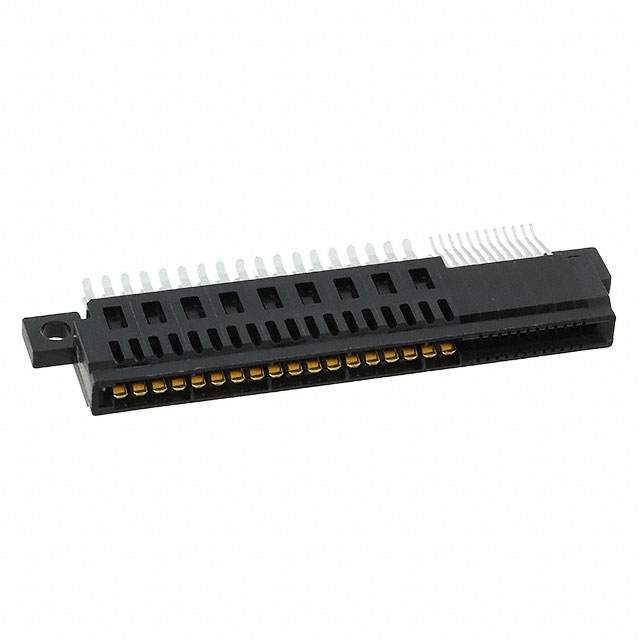

The Amphenol ICC (FCI) 10118139-001LF is a dual-edge female connector designed for edgeboard applications. It features a total of 60 positions, configured as 24 signal and 36 power contacts. The housing is constructed from black thermoplastic material. This component utilizes a straddle mount opening with an unthreaded flange feature measuring 0.154 inches (3.90mm). It is classified as a non-specified gender connector intended for robust board-to-board or backplane interconnections.
Feature Summary
- Dual-edge configuration supporting simultaneous signal and power transmission
- Straddle mount design with unthreaded flange opening
- Black thermoplastic insulation housing
Applications
- Edgeboard interconnection systems
- Backplane connectivity solutions
- High-density signal and power distribution modules
Procurement Notes
Verify the specific pinout assignment against official datasheets, as this part is designated as non-specified. Confirm that the 0.154-inch straddle mount opening aligns with the target chassis or panel requirements. Ensure compatibility with the intended edgeboard thickness and mating interface specifications before finalizing procurement.
Selection Notes
Select this connector when a dual-edge architecture is required to separate signal and power domains within a single assembly. The 60-position capacity accommodates high-density layouts. Consider the straddle mount style if panel mounting stability is prioritized over through-hole or surface-mount alternatives. Validate thermal and electrical ratings against system constraints.
Part Context
This component belongs to the Amphenol ICC (FCI) edgeboard connector family. It is engineered for industrial and commercial applications requiring reliable interconnects between edgeboards and backplanes. The dual-edge design facilitates efficient routing of mixed signal and power lines in compact form factors.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation.
