10122992-001LF

Overview

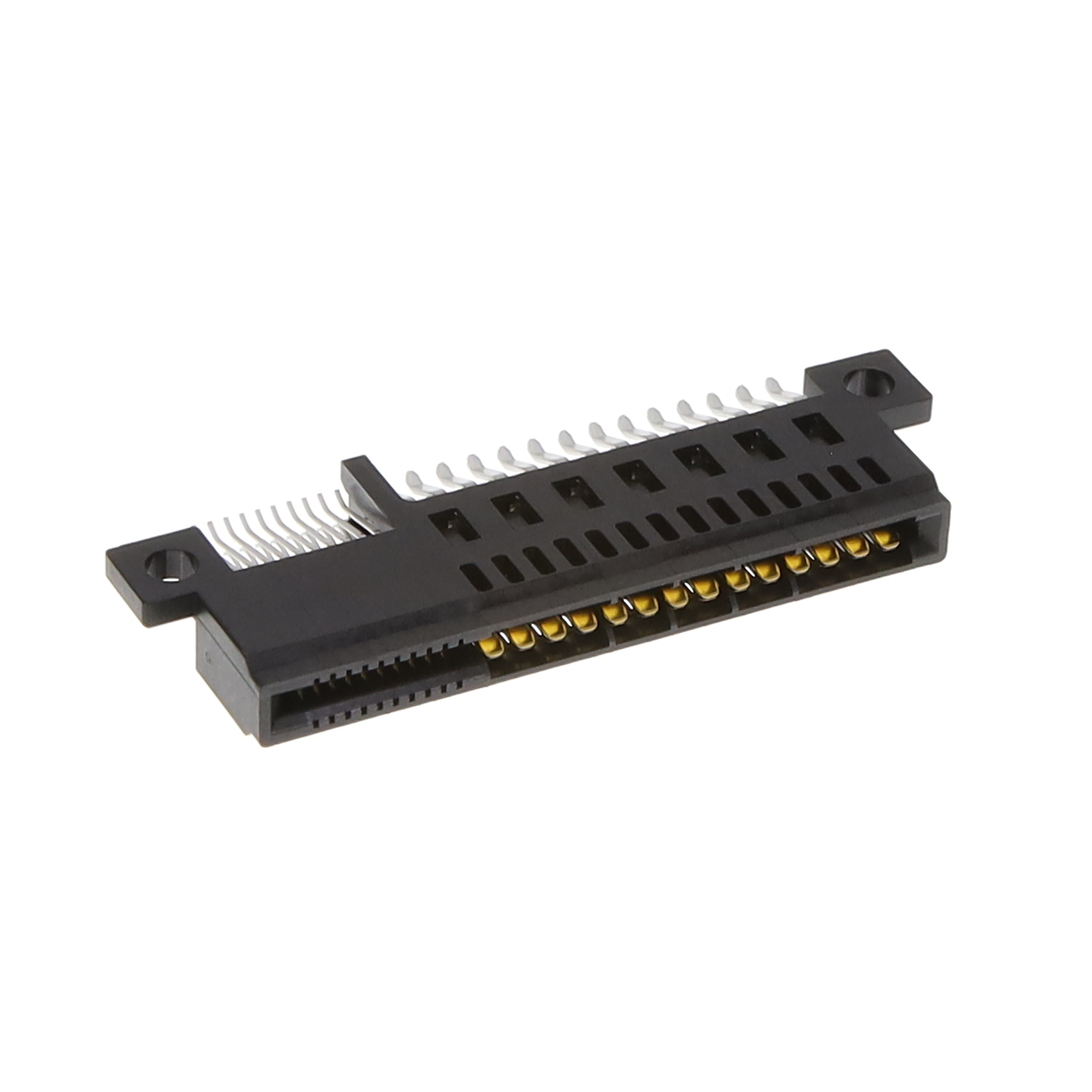

The Amphenol ICC (FCI) 10122992-001LF is a dual board edge connector designed for straddle mount applications. It features 48 positions arranged in two rows, providing robust electrical interconnection for card extender systems. The component utilizes solder termination to ensure secure attachment to the host PCB. Constructed with copper alloy contacts and thermoplastic insulation, it supports reliable signal transmission in demanding environments.

Feature Summary

• Dual row configuration for high-density connectivity
• Straddle mount design for secure board edge engagement
• Solder termination for permanent PCB integration

Applications

• Card extender systems
• Industrial automation control units
• Semiconductor manufacturing equipment interfaces

Procurement Notes

Verify the specific contact plating and housing material specifications against the official datasheet before procurement. Confirm that the straddle mount footprint aligns precisely with the target PCB layout. Ensure the operating temperature range of -55°C to 105°C meets the environmental requirements of the final assembly application.

Selection Notes

Select this component when a dual-row edge connector is required for straddle mounting configurations. It is suitable for applications needing 48 positions with solder termination. Consider the mechanical stability provided by the flangeless opening design when evaluating mounting constraints and board thickness compatibility.

Part Context

This part belongs to the HPCE series of standard card edge connectors manufactured by Amphenol ICC (FCI). It is engineered for thick host board applications, offering enhanced mechanical retention compared to standard variants. The product line focuses on reliable performance in industrial and computing sectors requiring durable board-to-board connections.

Replacement Considerations

Cross-reference with other Amphenol FCI straddle mount connectors if availability is an issue. Verify that substitute parts maintain the same 48-position count and dual-row architecture. Ensure mechanical dimensions and termination methods are compatible with existing tooling and PCB designs.
