10124077-21000LF

Overview

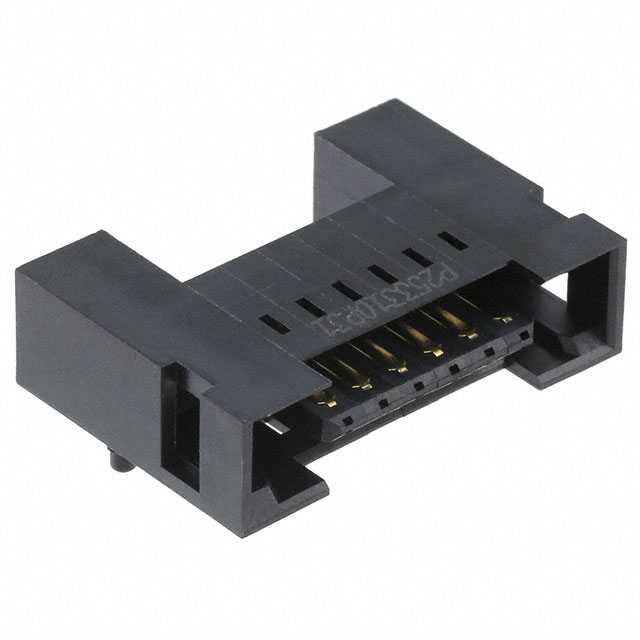

The Amphenol ICC (FCI) part number 10124077-21000LF is a standard card edge connector belonging to the HPCE series. It features a right-angle header design with an integrated latch mechanism and supports 12 signal positions. The component utilizes a through-hole mounting style for secure PCB attachment. Electrical ratings include a voltage capacity of 600 VAC and a current rating of 8.5 A per contact. The connector employs a 3 mm pitch between contacts, ensuring compatibility with specific board edge widths. Contact materials are copper alloy with tin plating to ensure reliable conductivity and corrosion resistance.

Feature Summary

• Integrated mechanical latch ensures secure mating and prevents accidental disconnection during operation.
• Right-angle header configuration optimizes vertical space utilization on printed circuit boards.
• High-power capability supports significant current loads within compact industrial form factors.

Applications

• Industrial control systems requiring robust power distribution
• Telecommunications infrastructure equipment
• Data processing hardware modules

Procurement Notes

Verify that the target application requires a right-angle orientation and an integrated latch mechanism, as these are fixed physical characteristics of this specific model. Confirm that the PCB layout accommodates the 3 mm pitch and the spatial requirements of the latch assembly. Ensure the operating environment does not exceed the specified temperature range or voltage limits defined in the official datasheet. Cross-reference the pin count and row configuration with the mating card edge specifications to guarantee electrical continuity.

Selection Notes

This component is selected based on its specific combination of high-current handling and mechanical retention features. The right-angle design is critical for applications where vertical clearance is limited but secure connection is mandatory. The tin-plated contacts offer a balance of performance and cost-effectiveness for general industrial use. Engineers should evaluate the mechanical stress on the PCB due to the through-hole soldering method and the potential need for additional support structures given the latch force.

Part Context

Amphenol ICC (FCI), formerly Framatome Connectors International, is a global leader in interconnect solutions. This product falls under the High Performance Card Edge (HPCE) category, designed for demanding environments. The company was acquired by Amphenol in 2016, integrating advanced manufacturing capabilities. This specific connector represents the brand's focus on reliable, high-density power and signal transmission for commercial and industrial electronics markets.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires identical mechanical dimensions, latch functionality, and electrical ratings. Alternative components must be evaluated against the original specification sheet to ensure compatibility with existing tooling and assembly processes.
