10125023-320028ALF

Overview

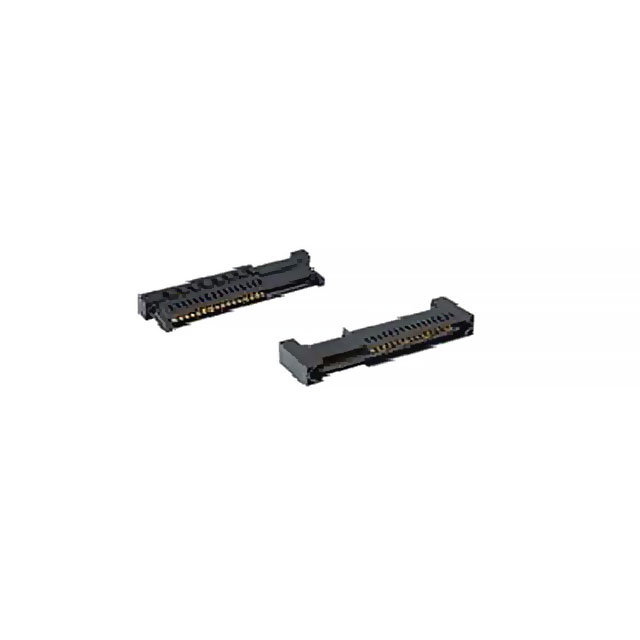

The Amphenol ICC (FCI) 10125023-320028ALF is a dual female card edge connector designed for through-hole mounting. It features 60 positions, configured as 32 power contacts and 28 signal contacts. The connector utilizes a mixed pitch arrangement with a 2.54mm spacing for the power section and a 1.27mm spacing for the signal section. It employs a solder termination method for secure board attachment. The housing is constructed from thermoplastic material, providing structural integrity and electrical insulation for high-performance applications requiring mixed signal and power routing.

Feature Summary

• Dual female configuration supporting both power and signal transmission
• Mixed pitch design accommodating 2.54mm and 1.27mm contact spacings
• Through-hole mounting style with solder termination for robust connection

Applications

• High-performance computing systems requiring mixed signal/power interfaces
• Server backplanes and motherboard interconnects
• Industrial control boards needing reliable card-edge connections

Procurement Notes

Verify the specific ordering suffix to ensure the correct contact plating and housing color match the design requirements. Confirm that the mixed pitch dimensions align precisely with the target card edge thickness and guide rail specifications. Check for RoHS compliance status if environmental regulations apply to the end product. Ensure the through-hole pad layout corresponds to the manufacturer's recommended footprint to guarantee proper solder joint formation during assembly.

Selection Notes

Select this component when a single connector must handle both high-current power delivery and high-density signal routing. The mixed pitch allows for optimized space utilization on the PCB compared to using separate connectors. Consider the mechanical stability provided by the through-hole mount versus surface-mount alternatives. Evaluate the thermal performance requirements of the power contacts against the connector's rated current capacity for the specific application environment.

Part Context

This part belongs to the HPCE (High Performance Card Edge) series by Amphenol ICC (FCI), which focuses on robust interconnect solutions for demanding electronic environments. The series is known for supporting high-speed data transmission and substantial power handling capabilities. The 10125023- prefix indicates a specific family within the Power Edge Card line, tailored for complex system architectures where reliability and density are critical factors in the overall system design.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
