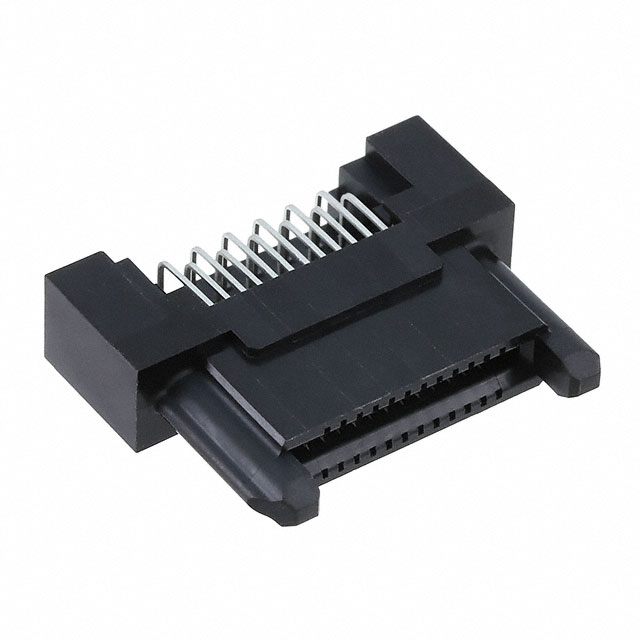

10128276-000024CLF

Overview

The Amphenol ICC (FCI) part number 10128276-000024CLF is a semi-keyed edgeboard connector designed for high-density applications. It features a female contact configuration with 24 positions arranged in a single row. The connector utilizes a 1.27mm (0.050 inch) pitch to ensure precise mating alignment. Contacts are plated with gold over a GXT substrate to provide reliable signal transmission and corrosion resistance. The housing is constructed from thermoplastic material, offering mechanical stability and electrical insulation for board-to-board or backplane interconnects.

Feature Summary

• Semi-keyed design ensures accurate alignment during mating cycles
• Gold-plated contacts provide durable signal integrity
• Thermoplastic housing offers structural support

Applications

• High-density electronic assemblies
• Backplane interconnect systems
• Industrial control modules

Procurement Notes

Verify the specific suffix CLF against official Amphenol documentation to confirm plating thickness and material composition. Ensure compatibility with corresponding male edgeboards regarding keying positions and pin count. Request manufacturer datasheets for updated environmental compliance status and RoHS declarations prior to finalizing procurement orders.

Selection Notes

Select this component when a 24-position female connector with a 1.27mm pitch is required. The semi-keyed feature is essential for preventing misalignment in dense layouts. Verify that the operating environment supports the thermal properties of the thermoplastic housing and that the gold plating meets the necessary conductivity requirements for the application.

Part Context

This component belongs to the Amphenol ICC (FCI) edgeboard connector portfolio, which specializes in high-reliability interconnect solutions. The series is engineered for demanding environments requiring robust signal transmission. As part of the broader FCI product line acquired by Amphenol, it integrates advanced manufacturing techniques for consistent performance across various industrial sectors.

Replacement Considerations

Consult official cross-reference guides for direct substitutes. Verify that any alternative maintains the 24-position count, 1.27mm pitch, and semi-keyed interface to ensure mechanical and electrical compatibility without redesigning the host assembly.
