10128553-001LF

Overview

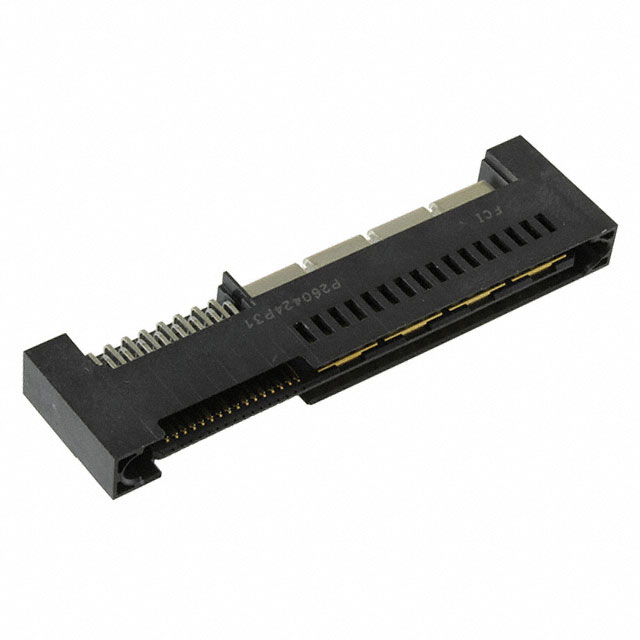

The Amphenol ICC (FCI) 10128553-001LF is a standard card edge connector designed for vertical board-to-board or backplane applications. It features a dual-row configuration with 64 positions, accommodating both power and signal lines. The connector utilizes a tin-plated contact finish over a copper alloy base to ensure reliable electrical conductivity and corrosion resistance. Constructed with thermoplastic insulation, it supports an operating temperature range of -55°C to +105°C. The component is RoHS compliant and meets REACH standards, ensuring suitability for modern electronic manufacturing requirements.

Feature Summary

• Dual-row architecture supporting simultaneous power and signal transmission
• Tin-plated contacts on copper alloy substrate for durability
• Thermoplastic insulation material for structural integrity
• Vertical mounting orientation for space-efficient integration

Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment signal routing
• Consumer electronics internal board connections
• Automotive electronic module interfaces

Procurement Notes

Verify the specific suffix designation against official manufacturer documentation to confirm pin count and plating specifications. Ensure compatibility with mating card edge thicknesses and verify that the tin finish meets the required environmental exposure limits for the target application. Cross-reference the active status with current production lifecycle notices to avoid obsolescence risks during long-term deployment phases.

Selection Notes

Select this component when a high-density vertical interface is required for mixed signal and power distribution. Evaluate the thermal performance within the specified -55°C to +105°C range against operational extremes. Confirm that the mechanical footprint aligns with the PCB layout constraints and that the vertical profile does not interfere with adjacent components or enclosure structures.

Part Context

This part belongs to the standard card edge connector family from Amphenol ICC (FCI). It is distinct from header-only variants like the 58360 series by providing a complete female receptacle solution. The 64-position design differentiates it from lower-count alternatives, offering higher channel density in a single vertical package suitable for complex system architectures.

Replacement Considerations

Direct substitutes are not explicitly confirmed in public documentation. Verify cross-compatibility with other 64-pin vertical card edge connectors based on pitch, height, and locking mechanism specifications before substitution.
