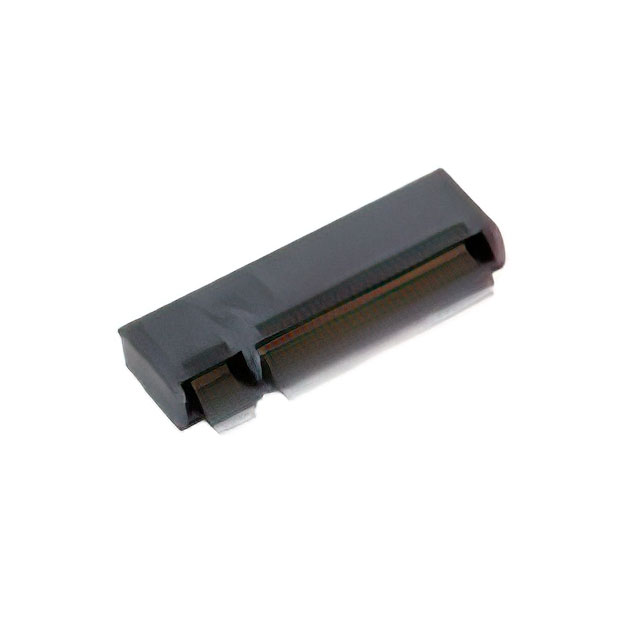

10130616-067RDLF

$1.36

Description：CONN PCI EXP FMALE 67POS GOLD
Series：HPCE®
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR)

SKU:574fb15a6e08 Category: Edgeboard Connectors Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

10130616-067RDLF is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN PCI EXP FMALE 67POS GOLD. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 10130616-067RDLF

Description：CONN PCI EXP FMALE 67POS GOLD
Series：HPCE®
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR)
Card Type：PCI Express™
Gender：Female
Number of Positions/Bay/Row：-
Number of Positions：67
Card Thickness：0.031" (0.79mm)
Number of Rows：2
Pitch：-
Read Out：Dual
Features：Board Guide
Mounting Type：Surface Mount, Right Angle
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：30.0µin (0.76µm)
Contact Type：-
Color：Natural
Flange Feature：-
Operating Temperature：-40°C ~ 80°C

Edgeboard Connectors datasheet and documents for 10130616-067RDLF

10130616-067RDLF

Edgeboard Connectors Overview

The Amphenol ICC (FCI) 10130616-067RDLF is a card edge connector designed for M.2 PCIe NVMe SSD applications. It features a dual-side contact configuration with a 0.5mm pitch, accommodating high-speed data transmission requirements. The component utilizes a vertical board-to-board or cable mounting style with through-hole termination. Constructed with thermoplastic insulation and copper alloy contacts, it ensures reliable electrical performance in compact storage form factors.

Edgeboard Connectors Feature Summary

Dual-side contact design optimized for M.2 PCIe NVMe SSD interfaces
Vertical mounting configuration supporting compact board-to-board connections
Through-hole termination method for secure PCB attachment

Edgeboard Connectors Applications

M.2 PCIe NVMe solid-state drive installations
High-speed data storage module interconnects
Compact electronic device internal storage interfaces

Edgeboard Connectors Procurement Notes

Verify the specific datasheet version and mechanical drawings prior to procurement. Confirm that the dual-side contact specification aligns with the target M.2 SSD slot requirements. Ensure compatibility with the intended board thickness and mounting orientation. Cross-reference the part number suffixes to confirm material and packaging specifications match project needs.

Edgeboard Connectors Selection Notes

Select this component when designing for M.2 PCIe NVMe form factors requiring dual-sided signal integrity. Evaluate the vertical profile constraints against the enclosure design. Consider the through-hole termination process capabilities of the assembly line. Verify thermal management requirements given the high-speed data application context.

Edgeboard Connectors Part Context

This connector belongs to the Amphenol ICC portfolio specialized for information and communication markets. It supports the growing demand for high-performance storage solutions. The product integrates advanced plating and signal integrity technologies typical of the FCI lineage acquired by Amphenol.
