10139965-067RDLF

Edgeboard Connectors Overview

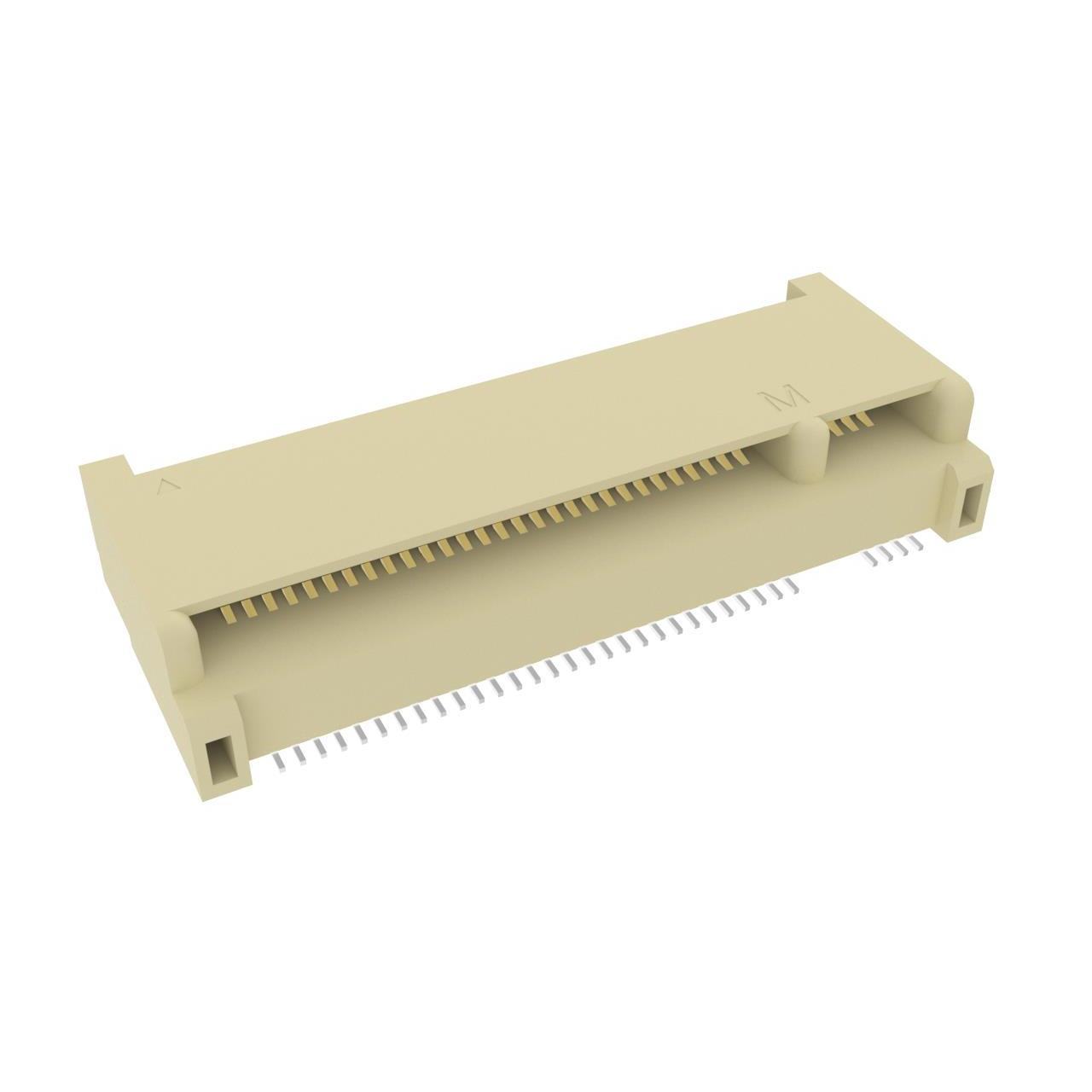

The 10139965-067RDLF is a dual-edge connector from the M.2 series by Amphenol ICC (FCI). It features 67 positions with a 0.020-inch (0.50mm) pitch. The contacts are gold-plated for signal integrity. Designed for surface mount installation, it supports high-speed data transmission applications.

Edgeboard Connectors Feature Summary

• Dual-edge contact design for secure board-to-board connection
• Gold-plated contacts ensure reliable signal performance
• Zero-insertion-force mechanism simplifies assembly

Edgeboard Connectors Applications

• M.2 module interconnection
• High-speed data storage interfaces
• Wireless communication modules

Edgeboard Connectors Procurement Notes

Verify the specific suffix RDLF against official Amphenol ICC documentation to confirm plating and packaging details. Ensure compatibility with M.2 form factor requirements before procurement. Cross-reference part numbers with authorized distributors to avoid counterfeit components.

Edgeboard Connectors Selection Notes

Select this component for applications requiring compact, high-density connections. Evaluate thermal management needs as surface mount devices generate heat. Confirm mechanical clearance for the dual-edge profile in the final enclosure design.

Edgeboard Connectors Part Context

This connector belongs to the M.2 series, supporting modern computing standards. It replaces older expansion slots with a smaller footprint. The design aligns with industry trends toward miniaturization and higher bandwidth capabilities in portable electronics.

Edgeboard Connectors Replacement Considerations

Check for direct substitutes within the same M.2 family. Verify pinout compatibility and mechanical dimensions. Consider lead-free alternatives if environmental compliance is required.
