10141523-122Y0LF

Edgeboard Connectors Overview

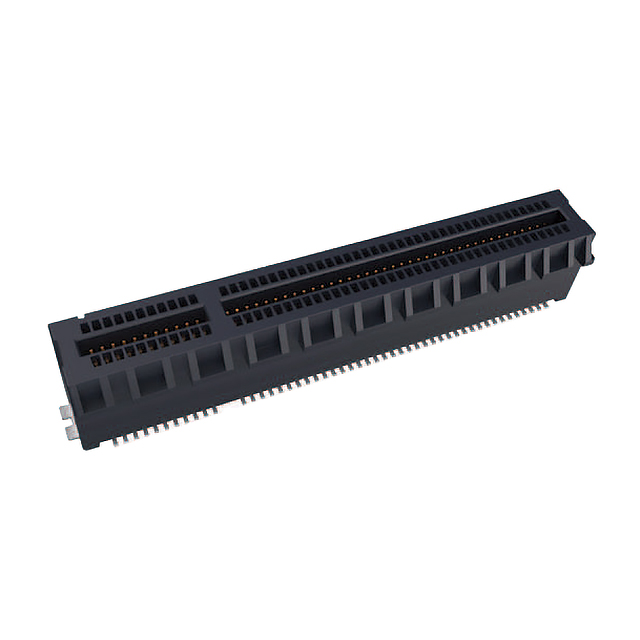

The Amphenol ICC (FCI) part number 10141523-122Y0LF is a PCI Express female card edge connector designed for surface mount installation. It features 98 positions with a contact pitch of 0.039 inches. The contacts are gold-plated to ensure reliable signal transmission and corrosion resistance. This dual-sided connector supports high-speed data applications within the PCI Express standard.

Edgeboard Connectors Feature Summary

• Surface mount termination method for automated assembly integration
• Gold-plated contacts for enhanced conductivity and durability
• Dual-sided configuration supporting high-density interconnects

Edgeboard Connectors Applications

• PCI Express peripheral cards
• High-speed data acquisition modules
• Industrial communication interface boards

Edgeboard Connectors Procurement Notes

Verify the specific suffix '122Y0LF' against the manufacturer's current datasheet to confirm active status and pinout compatibility. Ensure that the surface mount footprint matches the PCB design guidelines provided in the official package dimensions document before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a 98-position PCI Express interface is required for surface mount technology. Consider the 0.039-inch pitch and gold plating requirements for signal integrity. Verify that the board thickness and locking mechanism align with the system mechanical constraints.

Edgeboard Connectors Part Context

This connector belongs to the PCI Express series from Amphenol ICC (FCI), formerly FCI. The product line focuses on high-reliability interconnect solutions for computing and communications markets, supporting various form factors and signal speeds defined by the PCI-SIG standards.

Edgeboard Connectors Replacement Considerations

Check for direct cross-reference part numbers from Amphenol ICC or other manufacturers offering identical 98-position SMT PCI Express connectors with matching pitch and mounting style.
