10141523-123Y0LF

Edgeboard Connectors Overview

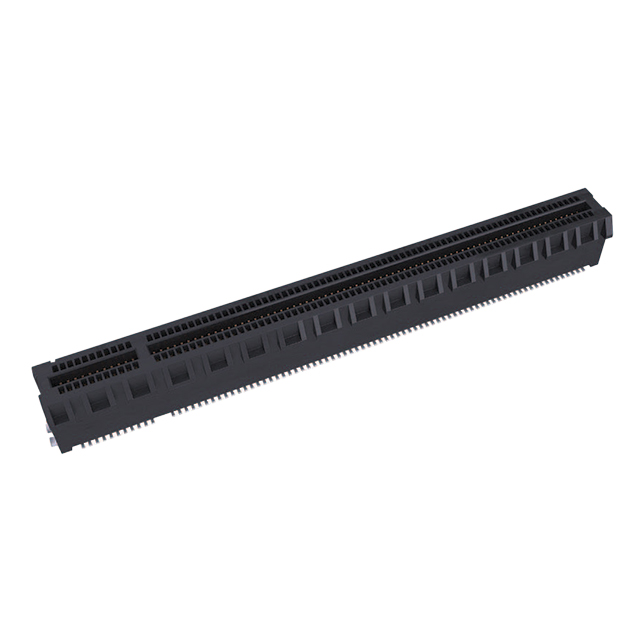

The Amphenol ICC (FCI) 10141523-123Y0LF is a PCI Express female card edge connector featuring 164 positions arranged in a dual-row configuration. It utilizes a 0.039-inch (1.00mm) pitch and employs surface mount termination for secure PCB attachment. The contacts are constructed from copper alloy with a gold finish, ensuring reliable signal transmission. Designed for vertical installation, this component supports standard PCI Express applications within defined electrical and thermal operating limits.

Edgeboard Connectors Feature Summary

• Dual-row female contact configuration for high-density signal routing
• Surface mount termination method for automated assembly integration
• Gold-plated copper alloy contacts to ensure conductivity and corrosion resistance

Edgeboard Connectors Applications

• PCI Express peripheral interface modules
• High-speed data transmission backplanes
• Industrial computing expansion cards

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official manufacturer documentation to confirm exact pin count, pitch, and termination style. Ensure compatibility with target PCB stack-up dimensions and mating card thickness specifications before procurement. Cross-reference the part number with current datasheets to validate active status and environmental ratings.

Edgeboard Connectors Selection Notes

Select this connector based on required 164-position capacity and 1.00mm pitch alignment with mating hardware. Confirm that the surface mount footprint matches the design board layout. Evaluate thermal performance requirements against the specified operating temperature range to ensure reliability under intended load conditions.

Edgeboard Connectors Part Context

This component belongs to the Amphenol ICC (FCI) interconnect portfolio, specifically designed for high-speed digital interfaces. It serves as a critical link between circuit boards and peripheral devices in computing architectures. The series emphasizes robust mechanical retention and consistent electrical performance for demanding electronic environments.

Edgeboard Connectors Replacement Considerations

Consult official substitution guides for direct equivalents. Verify pinout compatibility and mechanical envelope dimensions when considering alternative suppliers or updated revisions.
