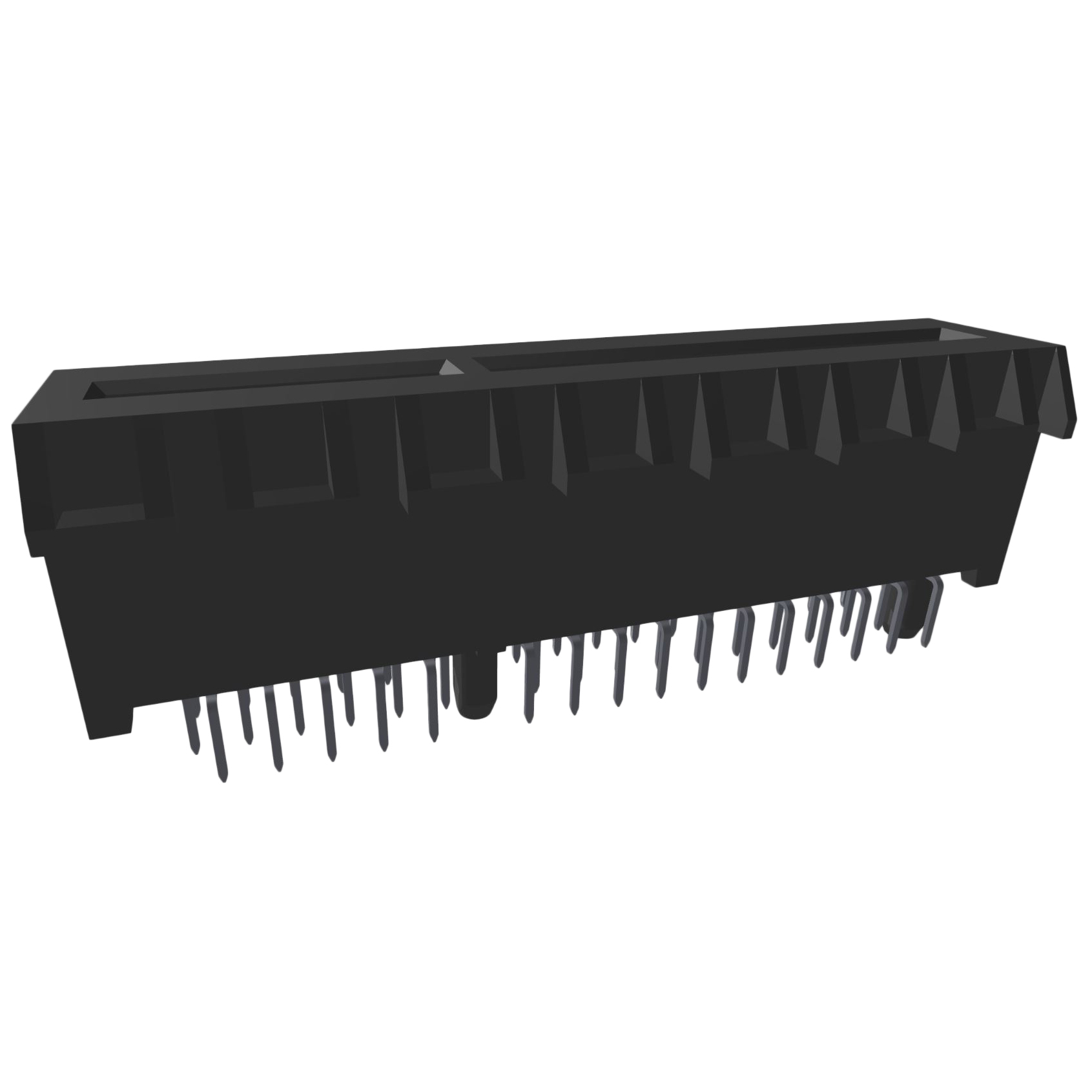

10142333-10011MLF is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN PCI EXP FMALE 64POS 0.039. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 10142333-10011MLF
- Description：CONN PCI EXP FMALE 64POS 0.039
- Series：-
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Card Type：PCI Express™
- Gender：Female
- Number of Positions/Bay/Row：-
- Number of Positions：64
- Card Thickness：0.062" (1.57mm)
- Number of Rows：2
- Pitch：0.039" (1.00mm)
- Read Out：Dual
- Features：Board Guide, Locking Ramp, Pick and Place
- Mounting Type：Through Hole
- Termination：Solder, Staggered
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：30.0µin (0.76µm)
- Contact Type：-
- Color：Black
- Flange Feature：-
- Operating Temperature：-55°C ~ 105°C
Edgeboard Connectors datasheet and documents for 10142333-10011MLF
Edgeboard Connectors Overview
The Amphenol ICC (FCI) part number 10142333-10011MLF is a PCI Express female card edge connector. It features 64 positions with a 0.039-inch (1.0mm) pitch. The component utilizes gold-plated contacts and copper alloy material for the terminals. Designed for vertical through-hole mounting, it supports PCIe Gen 4 applications. The connector is currently classified as a Last Time Buy item by the manufacturer.
Edgeboard Connectors Feature Summary
- Vertical card edge interface designed for high-speed signal transmission
- Gold-plated contact surfaces to ensure reliable electrical connectivity
- Copper alloy terminal construction for mechanical stability
Edgeboard Connectors Applications
- PCI Express Gen 4 peripheral cards
- High-density server expansion modules
- Industrial computing backplane interfaces
Edgeboard Connectors Procurement Notes
Verify procurement status immediately as this component is designated as a Last Time Buy item by Amphenol ICC (FCI). Confirm final availability windows and order quantities before production schedules are impacted. Ensure compatibility with existing PCB layouts due to specific dimensional requirements.
Edgeboard Connectors Selection Notes
Select this connector for designs requiring vertical PCIe Gen 4 interconnects with a 1.0mm pitch. Verify that the host board supports the specified 64-position configuration. Consider the end-of-life status when planning long-term product lifecycles and supply chain resilience strategies.
Edgeboard Connectors Part Context
This component belongs to the Amphenol ICC (FCI) card edge connector family, specifically engineered for PCI Express standards. It serves as a critical interface between expansion cards and system motherboards in data communication and storage infrastructure environments.
Edgeboard Connectors Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Due to the Last Time Buy status, alternative sourcing or redesign may be necessary for future production runs.
