10142333-10012MLF is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN PCI EXP FMALE 98POS 0.039. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 10142333-10012MLF
- Description：CONN PCI EXP FMALE 98POS 0.039
- Series：-
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Card Type：PCI Express™
- Gender：Female
- Number of Positions/Bay/Row：-
- Number of Positions：98
- Card Thickness：0.062" (1.57mm)
- Number of Rows：2
- Pitch：0.039" (1.00mm)
- Read Out：Dual
- Features：Board Guide, Locking Ramp, Pick and Place
- Mounting Type：Through Hole
- Termination：Solder, Staggered
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：30.0µin (0.76µm)
- Contact Type：-
- Color：Black
- Flange Feature：-
- Operating Temperature：-55°C ~ 105°C
Edgeboard Connectors datasheet and documents for 10142333-10012MLF
Edgeboard Connectors Overview

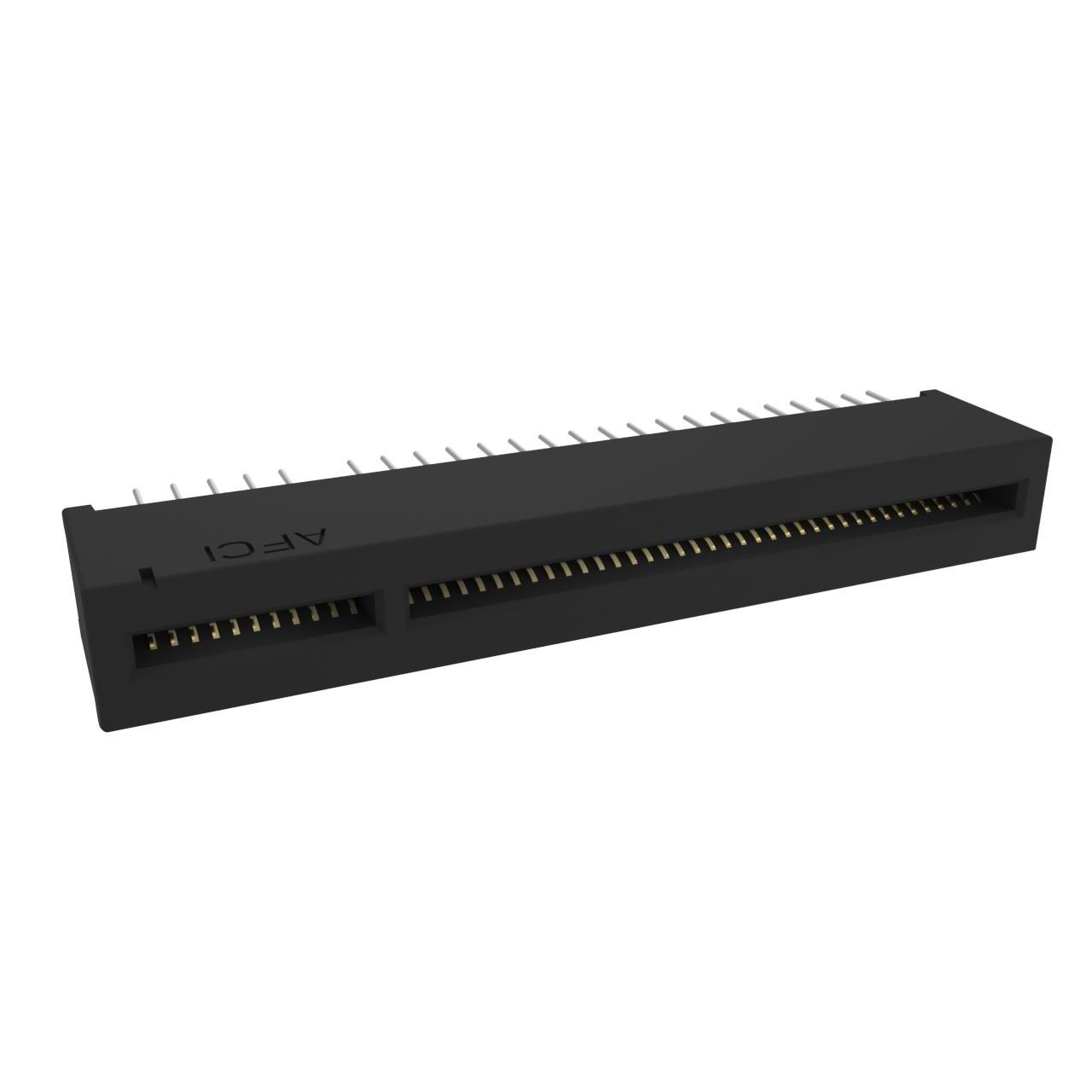

The 10142333-10012MLF is a PCI Express female card edge connector manufactured by Amphenol ICC (FCI). It features 98 positions with a 0.039-inch pitch, designed for vertical through-hole mounting. The connector utilizes gold-plated contacts and is intended for high-speed data transmission applications requiring reliable signal integrity.
Edgeboard Connectors Feature Summary
- Vertical through-hole mounting style for secure board integration
- Gold-plated contact surfaces ensuring reliable electrical performance
- Specifically engineered for PCI Express interface standards
Edgeboard Connectors Applications
- PCI Express peripheral cards
- High-speed data transmission modules
- Server and storage expansion boards
Edgeboard Connectors Procurement Notes
Verify the specific position count and pitch against design requirements before ordering. Confirm that the vertical orientation matches the PCB layout constraints. Ensure compatibility with mating card thickness specifications to guarantee proper mechanical engagement and electrical continuity during assembly.
Edgeboard Connectors Selection Notes
Select this component when a vertical PCI Express connection is required. Consider the 0.039-inch pitch for spacing compatibility. Evaluate the through-hole termination method against surface mount alternatives based on manufacturing capabilities and mechanical stress requirements for the target application environment.
Edgeboard Connectors Part Context
This part belongs to the Amphenol FCI connector portfolio, acquired by Amphenol Corporation. The series supports information technology and communication markets. It provides specialized interconnect solutions focusing on signal integrity and power management for modern electronic systems.
Edgeboard Connectors Replacement Considerations
Direct substitutes within the same family include 10142333-10033MLF, which offers 164 positions with identical pitch and mounting characteristics. Verify pin count differences to ensure circuit compatibility.
