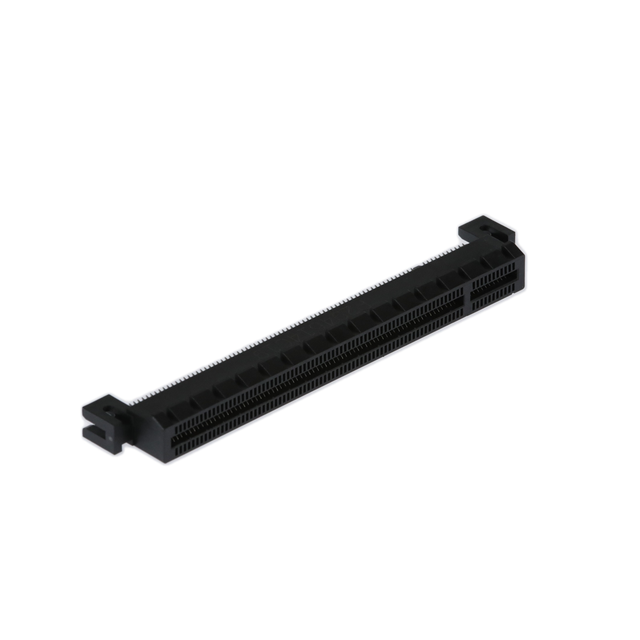

10146027-A40010LF

$4.73

Description：CONN PCI EXP FMALE 164POS 0.039
Series：-
Mfr：Amphenol ICC (FCI)
Package：Tray

SKU:e8e6c82b537d Category: Edgeboard Connectors Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

10146027-A40010LF is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN PCI EXP FMALE 164POS 0.039. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 10146027-A40010LF

Description：CONN PCI EXP FMALE 164POS 0.039
Series：-
Mfr：Amphenol ICC (FCI)
Package：Tray
Card Type：PCI Express™
Gender：Female
Number of Positions/Bay/Row：11; 71
Number of Positions：164
Card Thickness：0.062" (1.57mm)
Number of Rows：2
Pitch：0.039" (1.00mm)
Read Out：Dual
Features：Locking Ramp, Pick and Place
Mounting Type：Board Edge, Straddle Mount
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：15.0µin (0.38µm)
Contact Type：-
Color：Black
Flange Feature：Straddle Mount Opening, Unthreaded, 0.087" (2.20mm)
Operating Temperature：-

Edgeboard Connectors datasheet and documents for 10146027-A40010LF

10146027-A40010LF

Edgeboard Connectors Overview

The Amphenol ICC (FCI) 10146027-A40010LF is a PCI Express edgeboard connector featuring 164 positions with a 0.039-inch (1.00mm) pitch. It utilizes gold-plated contacts and thermoplastic insulation for signal integrity. The housing is black, designed for straddle mount installation with an unthreaded opening measuring 0.087 inches (2.20mm). This component supports high-density data transmission in demanding electronic environments.

Edgeboard Connectors Feature Summary

Supports high-density interconnects via 164-position configuration
Ensures reliable electrical contact through gold plating
Facilitates secure mechanical mounting using straddle mount design

Edgeboard Connectors Applications

Cell Phones
Digital Multimeters
Programming Logic Controllers
RADAR processing systems

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm exact pin count and termination style. Confirm that the straddle mount flange dimensions match the target chassis requirements. Ensure compliance with RoHS directives if required by the end application. Cross-reference the datasheet for mating connector specifications to guarantee proper interface alignment.

Edgeboard Connectors Selection Notes

Select this model when a 164-position PCI Express interface is required. The 1.00mm pitch suits applications needing compact board layouts. Verify thermal ratings against operating conditions. Consider the straddle mount feature for robust panel integration without additional threading hardware.

Edgeboard Connectors Part Context

This component belongs to the Amphenol ICC (FCI) edgeboard connector portfolio. It is engineered for high-speed digital signal transmission. The design prioritizes mechanical stability alongside electrical performance. It serves as a critical interface between circuit boards and external systems.
