10146027-A40110LF

Edgeboard Connectors Overview

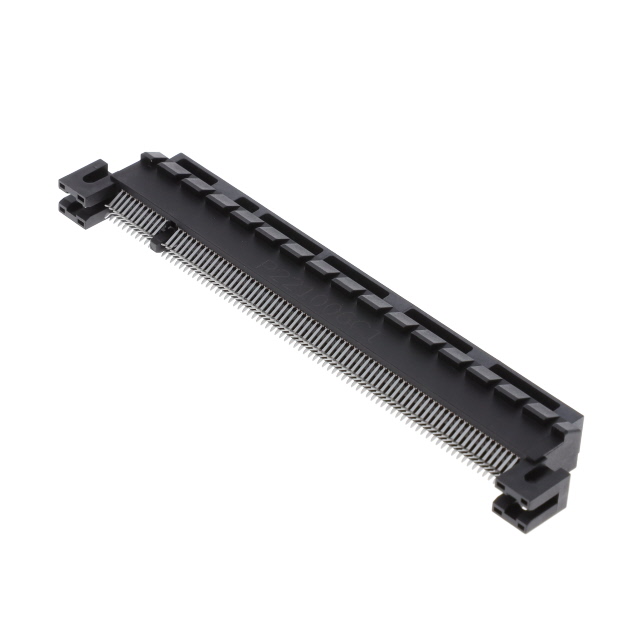

The Amphenol ICC (FCI) 10146027-A40110LF is a PCI Express Gen 4 card edge connector designed for straddle mount installation. It features 164 positions with a 1.00mm pitch and utilizes gold-plated copper alloy contacts. The component supports high-speed data transmission standards required for modern computing architectures.

Edgeboard Connectors Feature Summary

• Supports PCI Express Gen 4 signaling requirements
• Straddle mount configuration for enhanced mechanical stability
• Gold-plated contacts ensure reliable signal integrity

Edgeboard Connectors Applications

• High-performance server motherboards
• Graphics processing unit expansion slots
• Enterprise networking hardware

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm contact plating thickness and housing material variations. Confirm that the straddle mount footprint matches the target PCB layout dimensions. Ensure compliance with RoHS directives as indicated in official documentation before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when designing systems requiring PCIe Gen 4 compatibility with robust mechanical retention. The straddle mount style provides superior durability compared to standard vertical connectors. Evaluate thermal management requirements alongside electrical specifications for optimal system performance.

Edgeboard Connectors Part Context

This part belongs to the Amphenol FCI interconnect portfolio, specializing in high-density solutions for data center and industrial applications. The series emphasizes reliability and signal integrity for next-generation computing platforms requiring stable high-bandwidth connections.

Edgeboard Connectors Replacement Considerations

Consult official cross-reference lists for verified substitutes. Generic equivalents may not match the precise straddle mount geometry or Gen 4 electrical characteristics required for this specific application.
