Edgeboard Connectors Overview

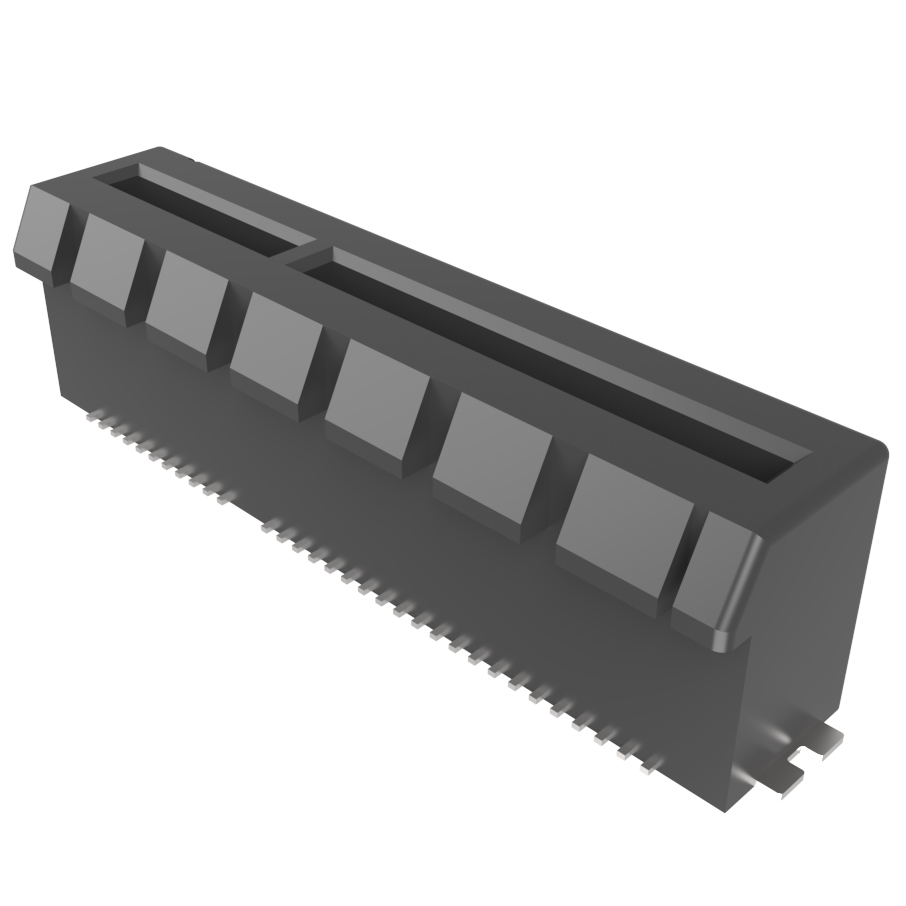

The Amphenol ICC (FCI) 10146065-111T0LF is a PCI Express vertical card edge connector featuring 64 positions with a 1mm pitch. It utilizes surface mount termination and straight mounting style. The housing is constructed from Liquid Crystal Polymer, while contacts are copper alloy with gold plating. Rated for 300V and 1.1A, it operates between -55°C and +85°C. This two-row connector employs mounting pegs for secure installation.

Edgeboard Connectors Feature Summary

• Vertical card edge interface designed for high-density signal transmission
• Gold-plated copper alloy contacts ensure reliable conductivity
• Liquid Crystal Polymer housing provides thermal stability

Edgeboard Connectors Applications

• PCI Express peripheral cards
• High-speed data acquisition modules
• Industrial communication boards

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm contact configuration and material specifications against the official datasheet. Ensure compatibility with PCB layout requirements regarding mounting peg placement and solder mask definitions before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a low-profile vertical connection is required for PCI Express applications. The 1mm pitch allows for compact board designs. Verify that the operating temperature range meets environmental constraints and that the current rating supports the circuit load.

Edgeboard Connectors Part Context

This part belongs to the Amphenol FCI PCI Express connector family, which focuses on signal integrity and power management for commercial electronics. The manufacturer acquired FCI in 2016, integrating its technologies into the Amphenol ICC division to support information and communication markets.

Edgeboard Connectors Replacement Considerations

Consult the official cross-reference list for verified substitutes. Generic equivalents may not match the precise 1mm pitch or mounting peg configuration required for this specific vertical card edge application.
